StellarNet Medidor de capas finas, bajo coste

StellarNet Medidor de capas finas, bajo coste

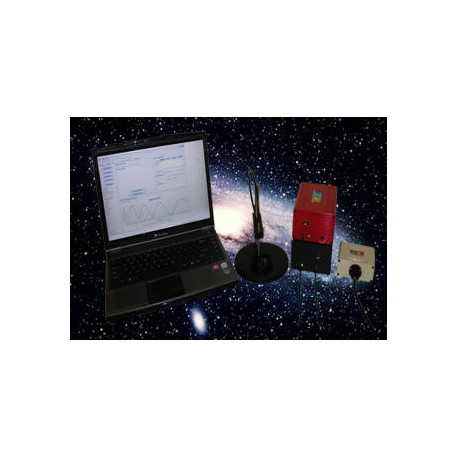

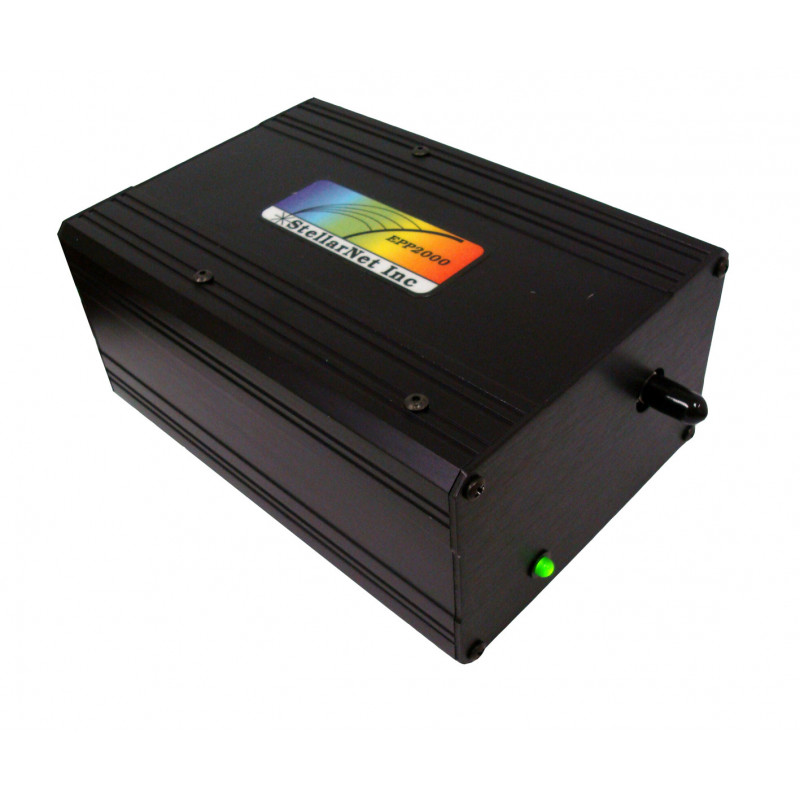

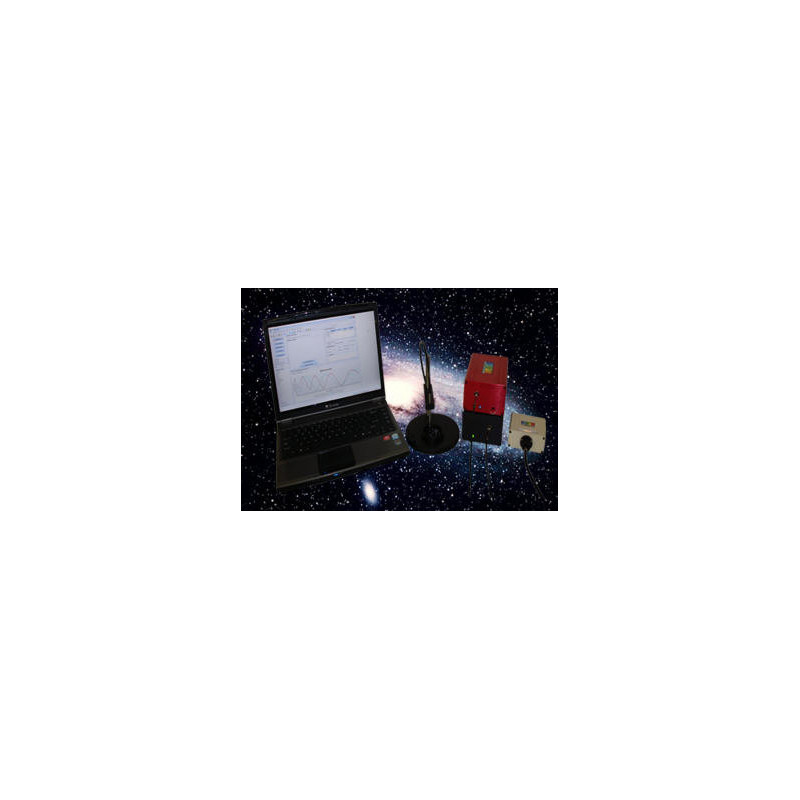

Sistemas preconfigurados basados en espectrómetro compacto portátil con entrada en fibra óptica para aplicaciones de medida y análisis espectral de capas finas (thin films)

Especificaciones básicas:

ThinFilm Software Measures Multilayer Film Structures

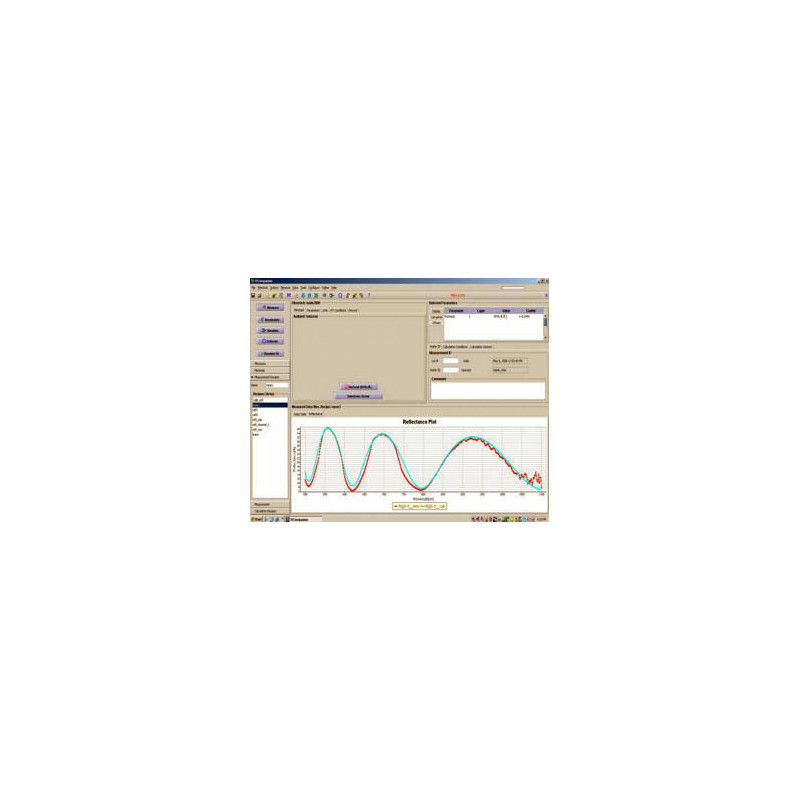

• Real-time Spectral Capture and Instrument control
• for Reflectance and/or Transmittance
• Includes Large Library of Materials Data
• Supports multilayer, freestanding, rough, and both
• thick and thin layer structures
• New materials can be easily added by measuring
• corresponding sample or importing data from file
• Supports Parameterized materials : Cauchy, Sellmeir, EMA
• (effective-medium approximation), Harmonic
• oscillator, Tauc-Lorentz oscillator, Drude-Lorentz

The Thickness and optical constants (n and k) can be measured quickly and easily using reflectance and/or transmittance spectroscopy. Fiberoptic compact spectrometers are a fast and cost effective solution. The measurement and analysis of the data provides results in seconds. USB connectivity and powerful user-friendly software make daily complex measurements quick and simple.

TFC software includes large library of materials data that enables measurement of the wide range of layer structures: multilayer, freestanding, rough, thick and thin layer structures are supported. New materials can be added easily by measuring corresponding sample or importing data from the text file.

The measurement process consists of two steps: data acquisition and data analysis. TFCompanion defines all the process in a measurement recipe and makes it transparent to the user. At the same time the user has the ability to store measured data and analyze it later.

TFCompanion supports Parameterized materials e.g. Cauchy, Sellmeir, EMA (effective-medium approximation), Harmonic oscillator, Tauc-Lorentz oscillator, Drude-Lorentz and many more approximations. These approximations represent optical dispersion of materials in desired spectral range using few coefficients that can be adjusted. For example, oxides are frequently represented using Cauchy and glasses using Sellmeir approximation, amorphous materials (e.g. SiNx, aSi) can be represented using Tauc-Lorentz and phasemixed materials (e.g. poly-Si) using EMA approximation.

Measurements are made using: reflectance/transmittance spectroscopy which measures the optical response of the layer structure. The user creates an optical model of the layer structure and uses data analysis to determine physical properties: the results are inferred from the best fit of measured and modeled data. TFCompanion provides many options to easily analyze simple and most complex filmstacks: graded layers, periodic structures, very thick films, films on thin substrates, multi-sample measurements, etc. Simulation and error-estimator tools allow user better understand data and the expected precision.

During in-situ, in-line or other long running measurements conditions like surface roughness, ambient light, etc. maybe changing. TFCompanion supports roughness and scaling correction that allows factoring in these effects.

Espectroscopía fotónica aplicada: medida y análisis espectral económico, bajo coste

No deje de visitar el apartado de accesorios para espectrómetros donde encontrará fuentes de luz, fibras, accesorios para radiometría,...

Disponemos de otros modelos de espectrómetro compacto:

• UV-VIS-NIR de gran rango, alta resolución y con refrigeración TE: STE-Silver-Nova
• UV-VIS-NIR con grating cóncavo (baja aberración y luz difusa): STE-BlackComet
• UV-VIS-NIR estándar: STE-BlueWave
• UV-VIS-NIR de alta resolución (rangos reducidos): STE-EPP2000-HR
• IR (900-2300nm): STE-NIR-InGaAs
