Láseres DPSS Q-switch 262-1445nm

Láseres DPSS Pulsados (Q-switch)

DPSS Q-Switched Lasers

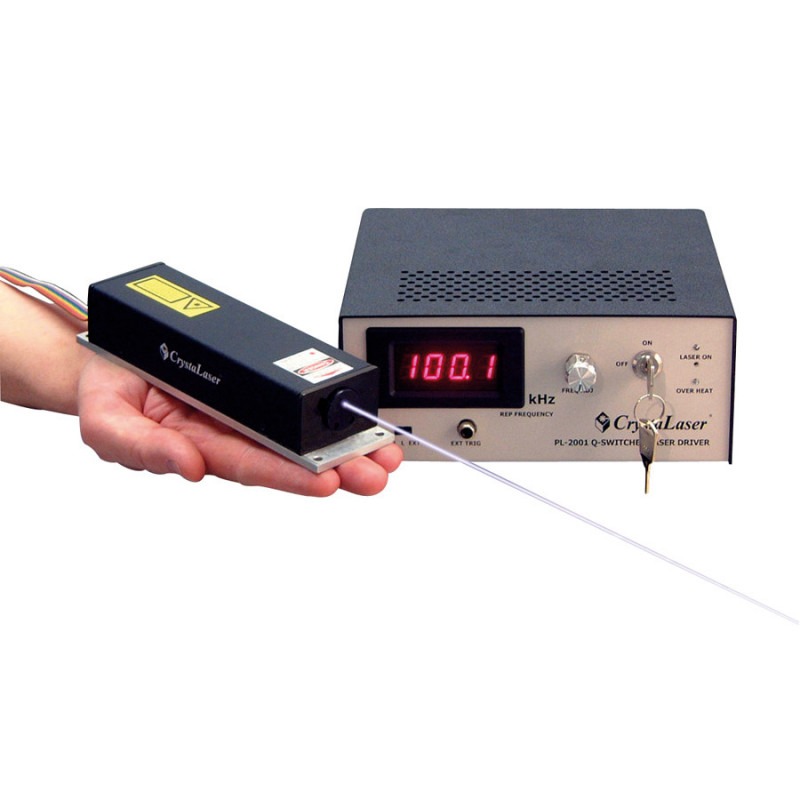

A compact, active Q-Switched, pulsed laser with superior performance. The Q-Switched Series breakthrough technology enables optimum performance with the lowest power consumption available. The design is flexible enough for both the repetition rate and pulse width requirements of your application.

Rubicon Series: This new generation of Q-Switched, narrow line-width laser is optimized for Raman Spectroscopy and LIDAR. The compact, lightweight design of the Rubicon Series has a clear advantage for use in the field, and in spacelimited
laboratory situations.

Features:

• Wavelength 262nm to 1340nm
• Power up to 4W
• Excellent beam quality
• Extremely low power consumption
• Air-cooled
• no cooling water or fan required
• Unmatched ultra-compact and ultra-light-weight
• Repetition rate 1 kHz to 100 kHz internal adjustment
• 0 Hz to 200 kHz by external trigger

Applications:

• Material processing
• Semiconductor inspection
• LIDAR
• Photoluminescence
• Solar material processing
• Scientific research
• Raman Spectroscopy

Specifications of the pulsed DPSS lasers CRL-QLlambda-xxx:

Wavelength lambda [nm]	262, 266	349, 351, 355	440, 473	523
Average opt. power [mW]*	2...100	10...100	25...50	50...1000
Pulse duration [ns]	10-15	10-15	15-35	10-25
Pulse rep. rate, int. trigger	1 kHz-100 kHz	1 kHz-100 kHz	1 kHz-100 kHz	1 kHz-100 kHz
Pulse rep. rate, ext. trigger	0-200 kHz	0-200 kHz	0-200 kHz	0-200 kHz
Power stability, rms (1-10 kHz)	5%	5%	5%	3%
Transversal mode TEM00, M2	< 1,3	< 1,3	< 1,2	< 1,2
Beam diameter 1/e2 [mm]	0,15x0,3	0,2	0,2	0,3
Beam divergence, full [mrad]	2-6	3-4	3-4	3-4

Wavelength lambda [nm]	527	532	555	656
Average opt. power [mW]*	50...800	50...1000	500	100...200
Pulse duration [ns]	10-25	10-25	10-25	20-40
Pulse rep. rate, int. trigger	1 kHz-100 kHz	1 kHz-100 kHz	1 kHz-100 kHz	1 kHz-100 kHz
Pulse rep. rate, ext. trigger	0-200 kHz	0-200 kHz	0-200 kHz	0-200 kHz
Power stability, rms (1-10 kHz)	3%	3%	3%	3%
Transversal mode TEM00, M2	< 1,2	< 1,2	< 1,2	< 1,2
Beam diameter 1/e2 [mm]	0,3	0,3	0,3	0,5
Beam divergence, full [mrad]	3-4	3-4	3-4	3-4

Wavelength lambda [nm]	660, 671	1047, 1053, 1064	1313, 1319, 1342	1444
Average opt. power [mW]*	100...500	200...1500	200...500	500
Pulse duration [ns]	20-40	15-30	15-30	15-30
Pulse rep. rate, int. trigger	1 kHz-100 kHz	1 kHz-100 kHz	1 kHz-100 kHz	1 kHz-100 kHz
Pulse rep. rate, ext. trigger	0-200 kHz	0-200 kHz	0-200 kHz	0-200 kHz
Power stability, rms (1-10 kHz)	3%	3%	3%	3%
Transversal mode TEM00, M2	< 1,2	< 1,2	< 1,2	< 1,2
Beam diameter 1/e2 [mm]	0,5	0,5	0,5	0,5
Beam divergence, full [mrad]	3-4	3-4	3-4	3-4

*the average optical power depends on the pulse repetition rate

For further details please see datasheet.
