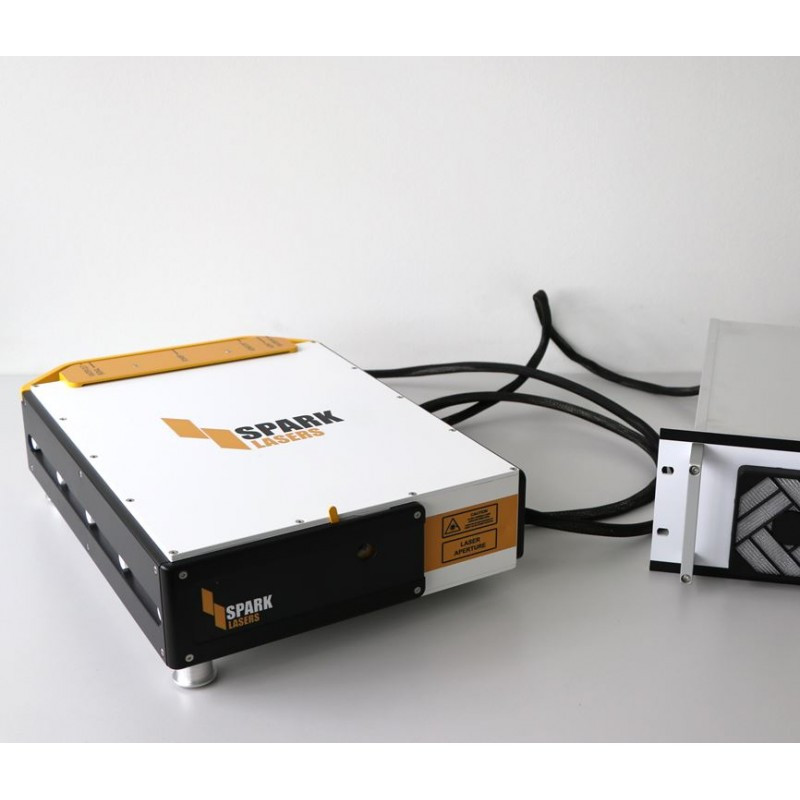

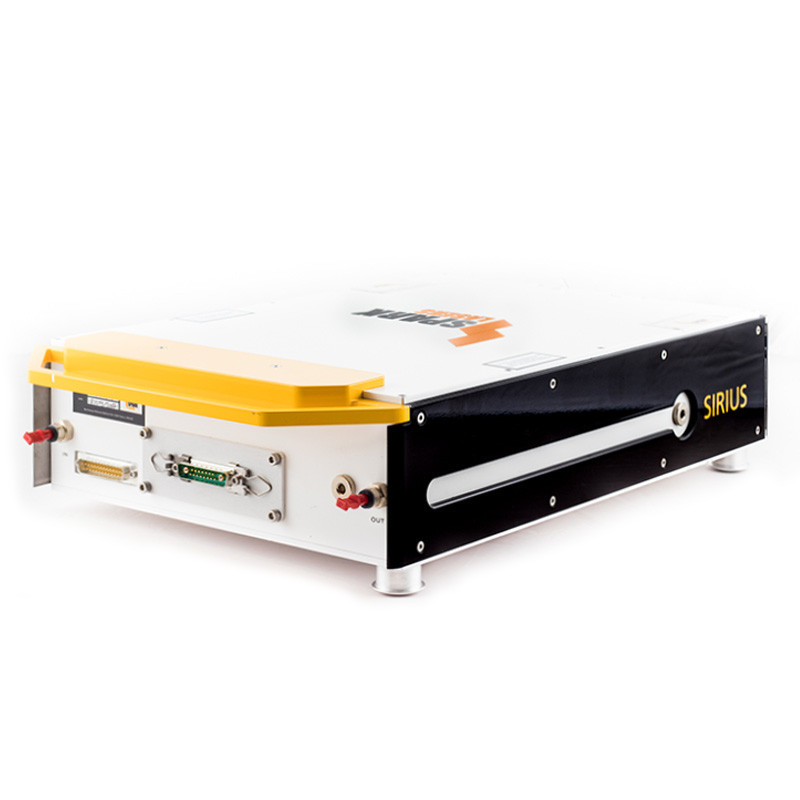

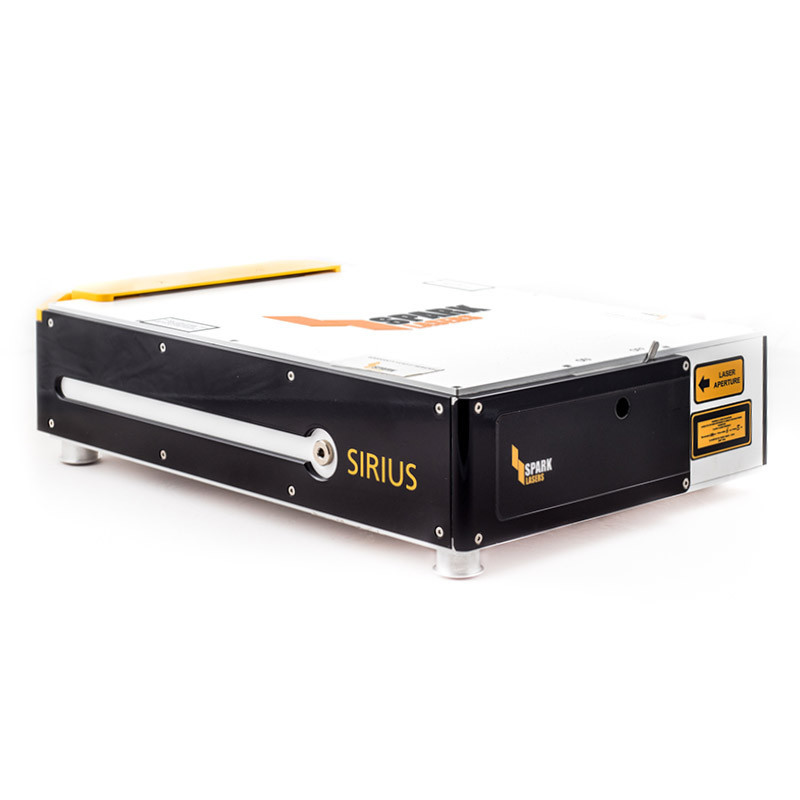

Laser picosegundo SIRIUS compacto y alta energia
Referencia SPK-SIRIUS
Los láseres de la serie SIRIUS producen alta energía en pulsos ps en un formato compacto y robusto.
- Imprimir
- Enviar a un amigo
- Eliminar este producto de mi lista de favoritos.
- Añadir este producto a mi lista de favoritos.
Laser picosegundo SIRIUS compacto y alta energiaDESCRIPCIÓN DEL PRODUCTO
The SIRIUS laser produces high energy with short (< 10 ps) pulses, in a compact and robust format. Offering one of the world's lowest cost of ownership, high precision and ease of integration, SIRIUS is ideally suited for industrial applications such as selective ablation of thin layers, glass engraving or micron-scale features used in a wide variety of applications in industrial market segments.
From single shot to 1 MHz, its efficient and intuitive GUI, with "on-the-fly" fully electronic parameters setting, makes it the best ally to fine tune even the most challenging processes whatever the PRF.
SIRIUS fits perfectly into any system working in a 24/7 operating enviroment. Its very reduced footprint, weight and low capital investment will maximize your ROI.
Specifications:
Model | SIRIUS-1064 | SIRIUS-532 |
Wavelength | 1064 nm | 532 nm |
Spectral width | < 0.3 nm | < 0.3 nm |
Pulse duration | < 10 ps | < 10 ps |
Pulse energy | >120 µJ at 20 kHz (2W) 60 µJ at 50 kHz (3W) 35 µJ at 100 kHz (3.5W) 20 µJ at 200 kHz (4W) 9 µJ at 500 kHz (4.5W) 5 µJ at 1 MHz (5W) | 46 µJ at 50 kHz (2,3W) 25 µJ at 100 kHz (2,5W) 11 µJ at 200 kHz (2,3W) 3 µJ at 500 kHz (1,8W) 1,4 µJ at 1 MHz (1,4W) |
Repetition rate | Single pulse up to 1 MHz (with burst mode) | |
M² | < 1.2 | < 1.2 |
Beam waist diameter | 1 mm | 1 mm |
Beam pointing | < 25 µrad/°C | |
Ellipticity | > 0.85 | > 0.85 |
Warm-up time | < 5 min | < 10 min |
Power stability | < 2% RMS | |
Pulse stability | < 2% RMS | |
Polarization | Linear, >100:1 | |
External Interfaces | High speed external synchronisation (Sync. Out/In), communication through USB, RS 232,TCP/IP | |
Software interfaces | Intuitive GUI, serial communication protocol | |
Pulse control | External AOM with gating and burst mode | |
Laser head dimensions & weight | 464 x 290 x 118 mm3 – 16kg | |
Laser controller dimensions & weight | 19”/3U rack – 12 kg | |
Standard cable length | 3 m | |
Power consumption | 100 to 240 VAC, < 400 W | |
Cooling | Water cooled | |
OPTIONS | 3rd harmonic generation available | |
External module with 3 wavelengths connected to main housing | ||
Low timing jitter < 20 ps for pulse on demand | ||
* Specifications subject to change without notice.
**Other wavelengths available upon request
