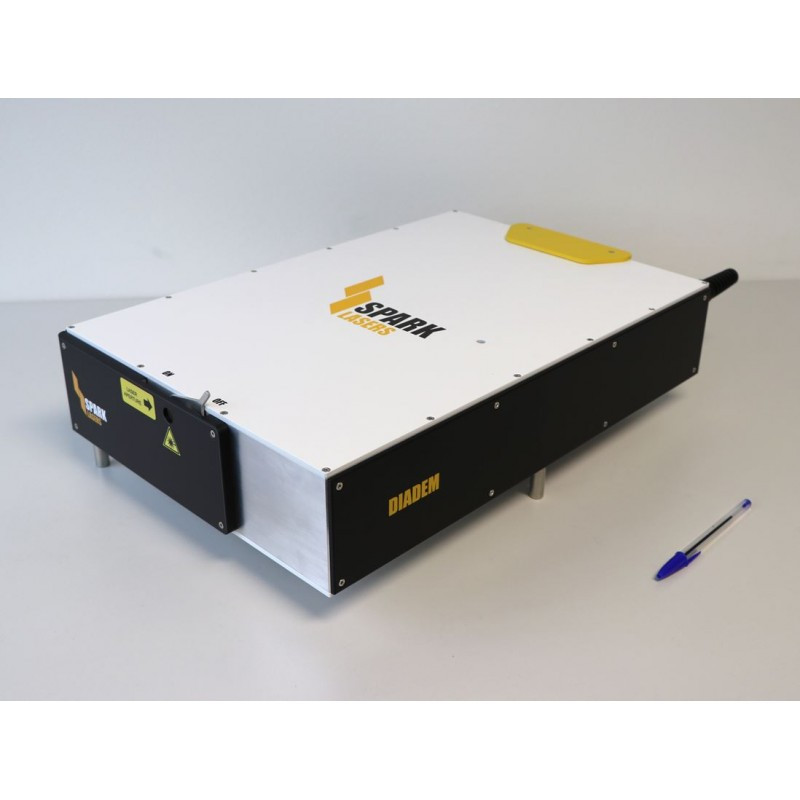

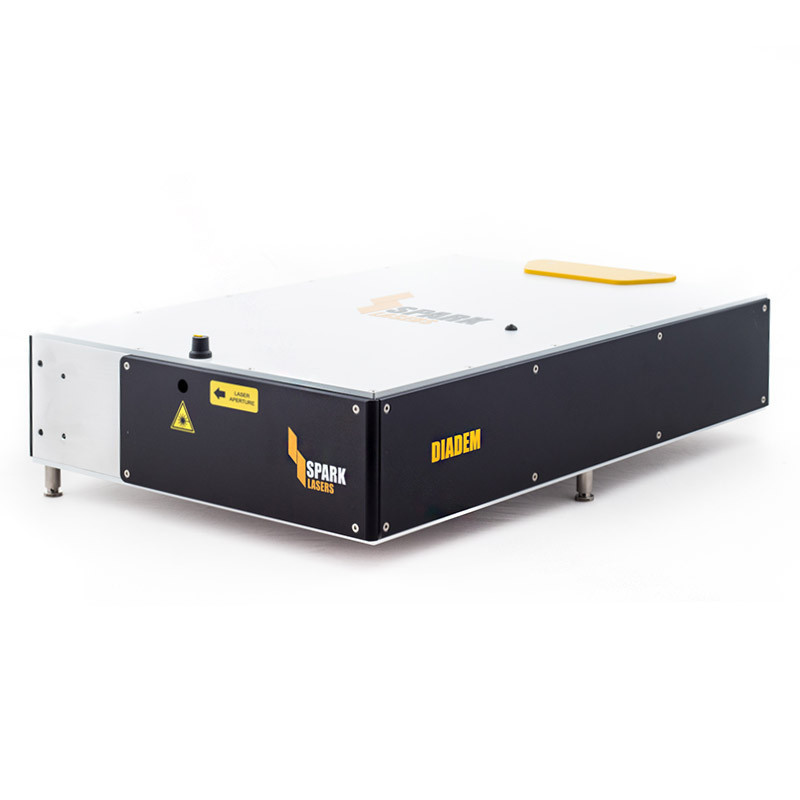

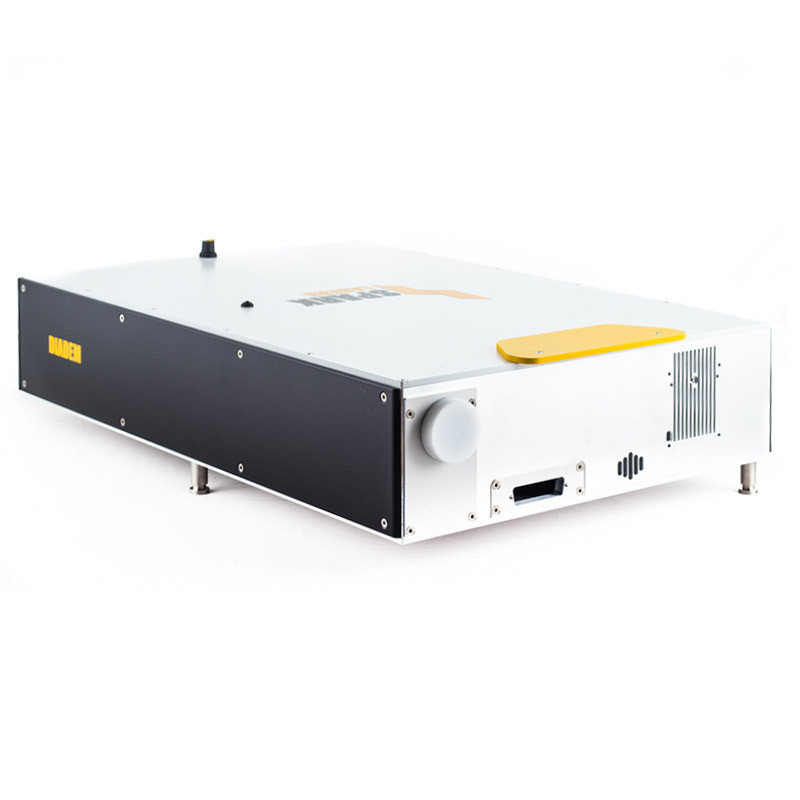

Laser femtosegundo DIADEM para Procesamiento de micro materiales y Optogenética
Referencia SPK-DIADEM
Los láseres DIADEM son muy compactos, de alta energía, ultrarrápidos para aplicaciones exigentes en el Procesamiento de Micro Materiales y Optogenética.
- Imprimir
- Enviar a un amigo
- Eliminar este producto de mi lista de favoritos.
- Añadir este producto a mi lista de favoritos.
Laser femtosegundo DIADEM para Procesamiento de micro materiales y OptogenéticaDESCRIPCIÓN DEL PRODUCTO
DIADEM produces high energy with femtosecond pulses, in a compact and robust format. Offering one of the World’s lowest cost of ownership, high precision and ease of integration, DIADEM is ideally suited for industrial applications such as very accurate & qualitative micron-scaled features drilling/cutting used in a wide variety of industrial market segments. It also suits perfect for optogenetic applications.
The average powers from 10 W to 30 W are available as standard. Higher average powers are available on request. It maintains a maximum puls energy off 30 µJ (optional 40 µJ).
Specifications:
Model | DIADEM IR-10** | DIADEM IR-20** | DIADEM IR-30** |
Wavelength | 1030 nm or 1060 nm | ||
Spectral linewidth | < 10 nm | ||
Pulse duration | < 300 fs | ||
Repetition rate | Single pulse to 2 MHz (with burst mode) - 10 MHz optional | ||
M² | < 1.2 | ||
Beam waist diameter | 2 mm | ||
Beam divergence | < 1 mrad | ||
Beam pointing | < 25 µrad/°C | ||
Ellipticity | > 0.85 | ||
Warm-uptime | < 15 min | ||
Power stability | < 2% RMS | ||
Pulse stability | < 2% RMS | ||
Polarization | Linear, > 100:1 | ||
External Interfaces | High speed external synchronization (Sync.Out/ In), communication through USB, RS232,TCP/IP | ||
Software interfaces | Intuitive GUI, serial communication protocol | ||
Laser head dimensions(mm3)- Weight |
531 x 342 x 143 mm – 17 kg | ||
Laser controller dimensions | 19”/3U rack - 7.5 kg | ||
Standard cable length | 3 m | ||
Power consumption | 100 to 240 VAC < 400 W | ||
Cooling | Air cooled | ||
OPTION | Possibility to convert in the harmonics and electronically switch thanks to an external module (IR/GR or IR/GR/UV) | ||
Tunable pulse duration from < 300 fs up to 10 ps | |||
* Specifications subject to change without notice.
**Other wavelengths and higher power available upon request
Laser 2000 Gmbh es el distribuidor exclusivo de Spark Lasers en Alemania, Austria, Países Nórdicos e Iberia.
