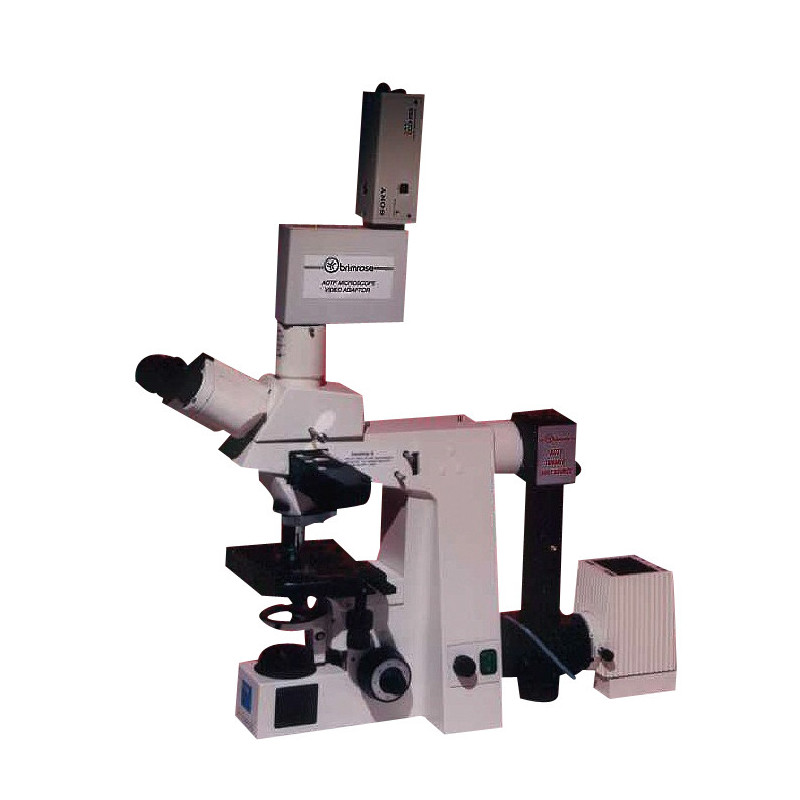

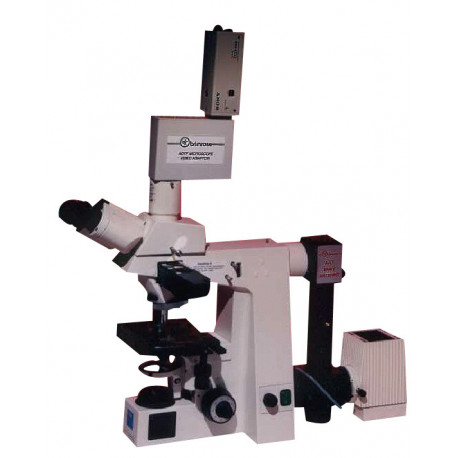

Adaptador de vídeo cámara-microscopio
Referencia BRI-AO-Kamera-Mikroskopadapter
Adaptador de vídeo para microscopios basado en filtro sintonizable acusto óptico en los rangos VIS-NIR
- Download
- Imprimir
- Enviar a un amigo
- Eliminar este producto de mi lista de favoritos.
- Añadir este producto a mi lista de favoritos.
Adaptador de vídeo cámara-microscopioDESCRIPCIÓN DEL PRODUCTO
Adaptador de vídeo cámara-microscopio
New series VA200 of Acousto-Optic Tunable Filter (AOTF)
Microscope Video Adapters.
These Adapters are designed for visible or NIR spectral ranges. They have an international standard C mount mechanical interface, which can be plugged into the C-Mount video port or eyepiece tube of any other standard microscope (eyepiece video adapter is not included). The VA200 AOTF system with Brimrose Synthesizer Electronics provides narrow bandwidth, rapid wavelength selection, and intensity control. The designed wavelength ranges depends on the customer's microscope and Brimrose's AOTF device. The AOTF Microscope is designed to have high spatial resolution of up to 2560 x 1920 pixels using 6.4 x 4.8 mm camera sensor area.
Applications:
- Normal Fluorescence
- Quality and Process Control in Microelectronic Industry
- Other OEM Applications
- Raman Spectral Imaging in Biomedical Industry
Technical Data of the VA200-.40-.65-L:
- Tuning range: 400-650 nm
- Spectral Bandwidth: 2-6 nm
- Switching time, min.: 15 ms
- Connectors: C-Mount
- Dimensions: 254 x 67 x 60 mm
- Weight: 1,0 kg
Technical Data of the VA200-.55-1.0-L:
- Tuning range: 550-1000 nm
- Spectral Bandwidth: 2-6 nm
- Switching time, min.: 15 ms
- Connectors: C-Mount
- Dimensions: 254 x 67 x 60 mm
- Weight: 1,0 kg
Technical Data of the VA200-.90-1.7-L:
- Tuning range: 900-1700 nm
- Spectral Bandwidth: 5-20 nm
- Switching time, min.: 15 ms
- Connectors: C-Mount
- Dimensions: 254 x 67 x 60 mm
- Weight: 1,0 kg
For more details please see the datasheet in the download section on the right hand side.
