> >Smart Temperature Chamber

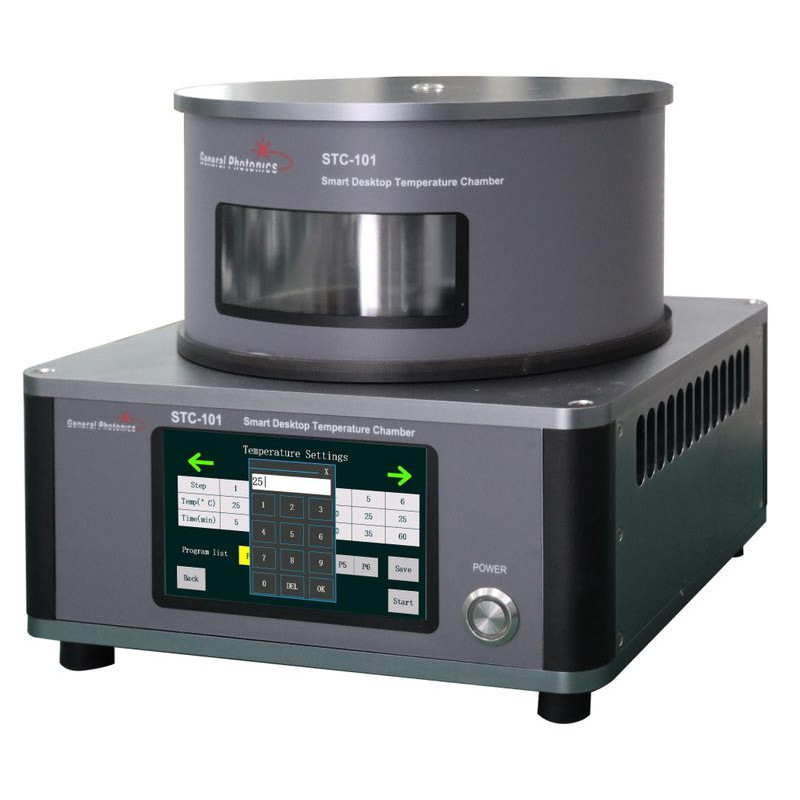

Smart Temperature Chamber View larger

Smart Temperature Chamber

Reference: GPC-STC-101

The smart temperature chamber STC-101 enables the characterization of the temperature-dependent behavior of fiber optic components and other compact components. Accurate control of temperature, temperature distribution and temporal temperature history allows demanding applications such as the measurement of the Shupe effect in the fiber coils of a fiber optic gyroscope.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Smart Temperature ChamberX



Dear Besson,

I am interested in the following product: Smart Temperature Chamber

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

Smart temperature chamber of General Photonics STC-101 with high-precision temperature control

The combination of a thermoelectric cooler with sophisticated sensors and efficient control algorithms provides a stable temperature, uniform temperature distribution and precisely controllable temporal temperature change in the measuring chamber.

Characteristics:

  • Temperature range: 0-100 ° C
  • Precise control of temperature rise times: up to 2 °C/min
  • Accuracy of temperature change rate: 0.2 °C/min
  • Very good temperature stability: 0.2 °C
  • Support for different temperature curves: ramp, step, sawtooth or cyclic
  • Direct operation on the device or via PC
  • LED illumination of the sample room for pattern observation during the test
  • Built-in multi-channel temperature sensors for real-time data analysis
  • Thermally insulated cover with magnets for easy replacement of test samples

Applications:

  • Temperature test on electronic components
  • Temperature test as measurement of the Shupe effect in the fiber coils of a fiber optic gyroscope (fiber gyroscope)
  • Calibration of temperature sensors
  • Characterization and calibration of FBG sensors
  • Characterization of the temperature characteristics of compact printed circuit boards or small assemblies>

GPC-STC101-Apllications
