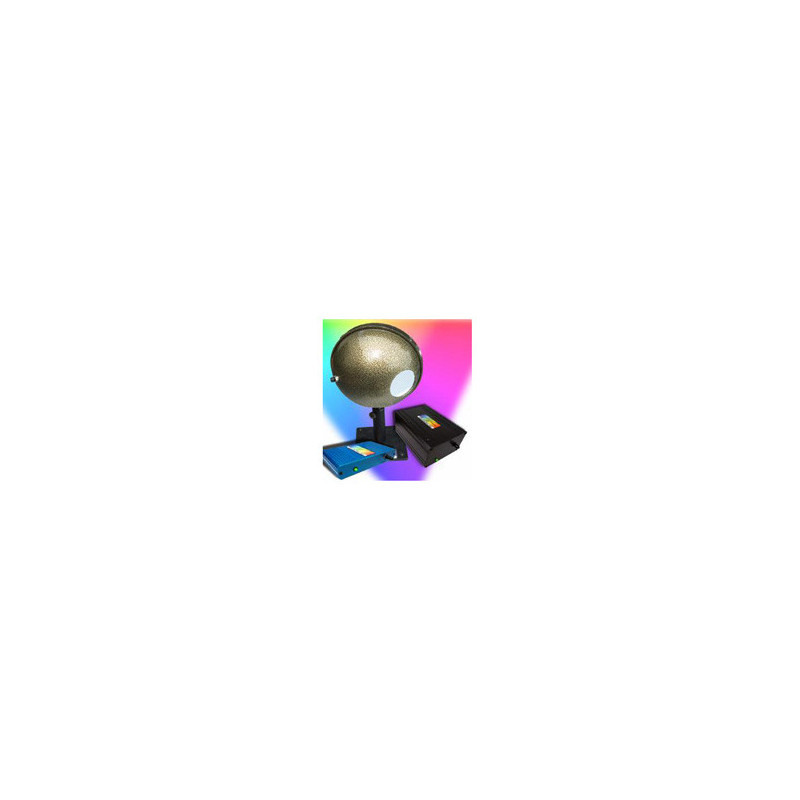

Sistema de espectrometría y colorimetría para la medida de LEDs y otras fuentes pequeñas. El sistema está basado en un espectrómetro compacto con entrada de fibra y accesorios como los cables de fibra óptica o esferas integradoras

Download
Print
Send to a friend
Send to a friend
LED measurement system
Sistema de espectrometría y colorimetría para la medida de LEDs y otras fuentes pequeñas. El sistema está basado en un espectrómetro compacto con entrada de fibra y accesorios como los cables de fibra óptica o esferas integradoras
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: LED measurement systemX

Dear Besson,

I am interested in the following product: LED measurement system

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

Color Measurement System BLACK-Comet-CXR SpectroColorimeters

This color measurement system measure the color of solid and liquid samples using either a fiber optic reflectance probe, fixture, dip probe, or cuvette holder. The StellarNet BLACK-Comet-CXR colorimeter has consistent resolution throughout 280 - 900 nm and is a perfect low cost instrument for any color measurement application. As one of StellarNet's concave grating models it has low stray light levels because there are no mirrors in its optical bench. It is engineered with no moving parts which results in shock proof durability, permanent alignment, and a ruggedness unmatched by any spectrometer in its field. The color measurement system BLACK-Comet-CXR reliably measures CIELAB & Delta E* values. StellarNet's BLACK-Comet-CXR colorimeter is applicable for color measurements of food, beverages, industrial and home liquids, textiles, plastics, pharmaceuticals, and raw materials.

Color Measurement System Accessories

A fiber optic sample probe is illuminated using a fiber optic light source (see options below). For measuring the color of solid samples an integrating sphere, such as the IC2, can be used in place of the fiber optic reflectance probe to improve measurement consistency. The IC2 act as a cosine receptor for irradiance measurements. In addition, a reflectance fixture with an integrated light source may be used to measure the color of solid and powder samples. A white reflectance standard, such as the RS50 listed below, is required to generate a reference for subsequent measurement of solid samples. For liquid sample measurements cuvettes, dip probes, and flow cells are used.

Item of the Color Measurement System

Item	Description
	Preconfigured Portable Case System for CIELAB Color Analysis
StellarCASE-Color	Integrated portable case system includes interior mounting of spectrometer instrumentation pre-configured for Open & Measure application with no additional setup required. The system includes a top mounted tablet with pre-installed Real-time spectrometer operating software for CIELAB colorimetry & dE color difference measurement. Internal main power control system with ON, OFF, & Charge buttons, acrylic sampling surface & 8 hour lifetime for field and portable applications.
	VisibleSpectrometers for Color Analysis
BLACK Comet	Concave Grating spectrometer for UV-VIS SpectroColorimetry, model CXR (280-900nm). Price includes slit, UV detector upgrade, integrated order sorting filters, and interface cable.
BLUE-Wave-VIS	Miniature fiber optic spectrometer range 350-1150nm, 2048 element CCD detector. PC interface via high speed USB-2 connection.
	Fiber Optic Accessories for Solids or Powder samples
RFX-2	Reflectance fixture with integrated light source & F600-VIS-NIR fiber optic cable
RFX-3D	Reflectance fixture with integrated light source & F600-VIS-NIR fiber optic cable
F600-1TO3-NIR-3D	Armored splitter, 1 meter, 1 SMA to 3 SMA. Designed for use with RFX-3D
SL1-Filter	10,000 hour Tungsten and Krypton lamp, 2800 Kelvin color temp, 350-2300nm, operation outside U.S. requires UP12V adapter. The SL1-FILTER includes a 0.5 diameter filter holder nose cone. Customers can use a variety of filters for spectral attenuation, band pass, and more. Includes Color Equalization filter to improve blue sensitivity
R600-8-UVVIS-SR	Reflectance probe for UV and Visible; 7 around 1 with 600um fibers
R600-8-VISNIR	Reflectance probe for Visible and NIR; 7 around 1 with 600um fibers
F600-VIS-NIR	Armored, 600um diameter single strand, multimode fiber optic cable with black PVC jacket and 2 SMA conectors-2 meter length for wavelength range 400-2200nm
RTIP-45	45° angled tip for reflectance probes; includes locking screw for positioning
RPH1	Reflectance Probe Holder for 45° angle measurements
RS50	Reflectance standard to set white reference, 50mm diameter
	Fiber Optic Accessories for Liquid Samples
SL1-CUV	* Integrated light source with standard 10 mm cuvette holder and F600
DP 400	Dip probe with 400um armored fiber, includes 10mm path length tip (requires SL1 light)
DP 400-TIP	Additional tips for dip probe. Specify 2, 5, 10, or 20mm path lengths
