Product description

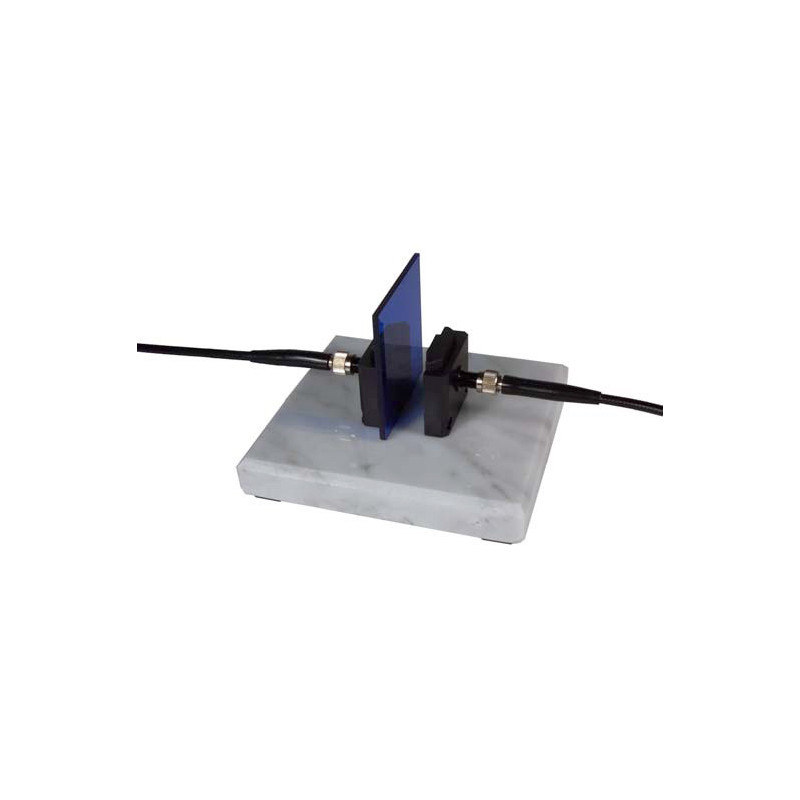

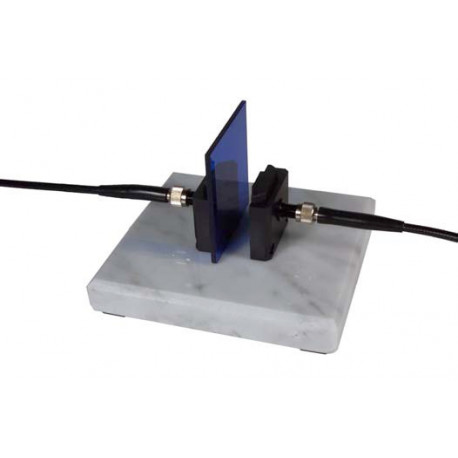

Transmission and absorbance measurement system

Transmission and absorbance measurements are the most common measurements in spectroscopie. With this kind of measurement you can characterize different samples like liquids, colour liquids or filters. For this measurement you always need a spectrometer, light source, light fiber and sample holder. For different samples we provide special sample holders. We also offer a universal sample holder for the named samples. Please note in special our light source with integrated cuvette holder. For measurements in the NIR range we also offer NIR spectrometers. With the software you can control both spectrometers simultaneously and you see only one spectrum. For measurements in liquids we have special dip probes.

Applications
  • food
  • Pharma
  • plastics
  • filter measurements
  • liquids

Please note our selected components for this measurements

ItemDescription
STE-BC-190/850Concave Grating spectrometer for UV-VIS
STE-BC-280/900Concave Grating spectrometer for UV-VIS
STE-BC-200/1080Super Range Concave Grating spectrometer for UV-VIS-NIR
STE-BC-220/1100Super Range Concave Grating spectrometer for UV-VIS-NIR
STE-RW-NIRSpectrometer for NIR (900-1700 nm)
STE-BW-VISSpectrometer for VIS-NIR (350-1150 nm)
STE-BW-UVNbSpectrometer for UV-VIS-NIR (200-1050 nm)
Light sources
STE-SL1-CUVHalogen light source with integrated standard 10 mm cuvette holder
STE-SL1-FILTERHalogen light source with 0,5" diameter filter holder nose
STE-SL3Deuterium light source
STE-SL5Deuterium/Halogen light source
STE-SL5Deuterium/Halogen light source with integrated standard 10 mm cuvette holder
STE-SL5-FILTERDeuterium/Halogen light source with 0,5" diameter filter holder nose
Accessories for tranmission/absorbance measurements
STE-TXF1Transmission fixture for UV-VIS-NIR for 10 mm cuvettes or solid samples like filters
STE-CUV1Cuvette holder for transmission, absorbance and color measurements in liquids
STE-F600-UV/VIS-SRLight fiber for UV-VIS
STE-F600-VIS/NIRLight fiber for VIS/NIR
STE-DP400Dip probe with 400um armored fiber, includes 10mm path length tip (requires STE-SL1 light)
STE-DP400-TIPAdditional tips for dip probe.  Specify 2, 5, 10, or 20mm path lengths
