> >fiber optic dip probe

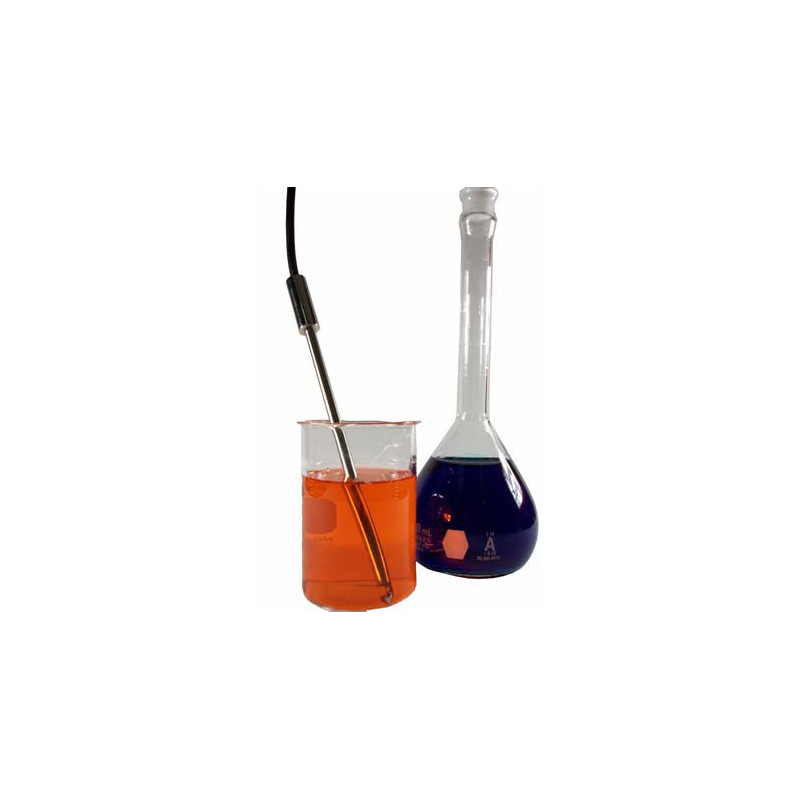

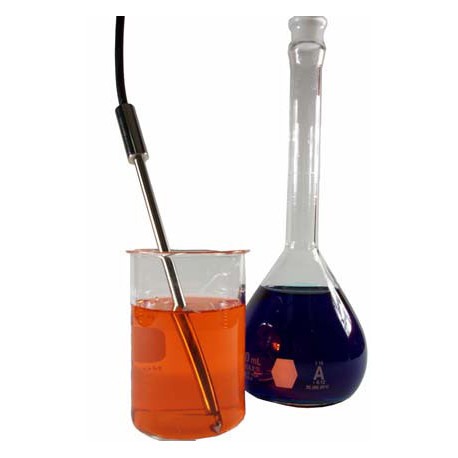

fiber optic dip probe View larger

fiber optic dip probe

Reference: STE-DP400

Sonda para medidas de absorción - trasmisión en líquidos






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: fiber optic dip probeX



Dear Besson,

I am interested in the following product: fiber optic dip probe

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description
choose from:
  • Dip Probe for UV-Vis - solarization resistant
  • Dip Probe for Vis-NIR
  • Dip Probe Tips, specify 2, 5, 10 or 20 mm



The Dip Probe connects to a light source and a spectrometer to measure characteristics of liquid samples. The Dip Probe Tip fixes the light path for consistent absorbance / transmission measurements, and is easily changed to shorter or longer path tips to measure lower or higher concentrations. Typical applications include color measurements, chemical concentrations, process monitoring, and environmental chemistries. Special mode mixer stabilizes fiber optic cable movements needed for low level measurements.

Advantages:
  • Large Spectral Range [190 nm-2200nm]
  • Enhanced Design includes an integrated mode stripper. This enable the end-user to move the probe after a reference has been taken. Have our engineers explain why this is critical.
  • Variable Pathlength Design enables the end-user to adjust the optical pathlength of the measurement [2, 5, 10, and 20 mm pathlengths are available].

Downloads - fiber optic dip probe

StellarNet_DipProbes_Laser_2000

Data sheet: DipProbes

Download (181.82k)
