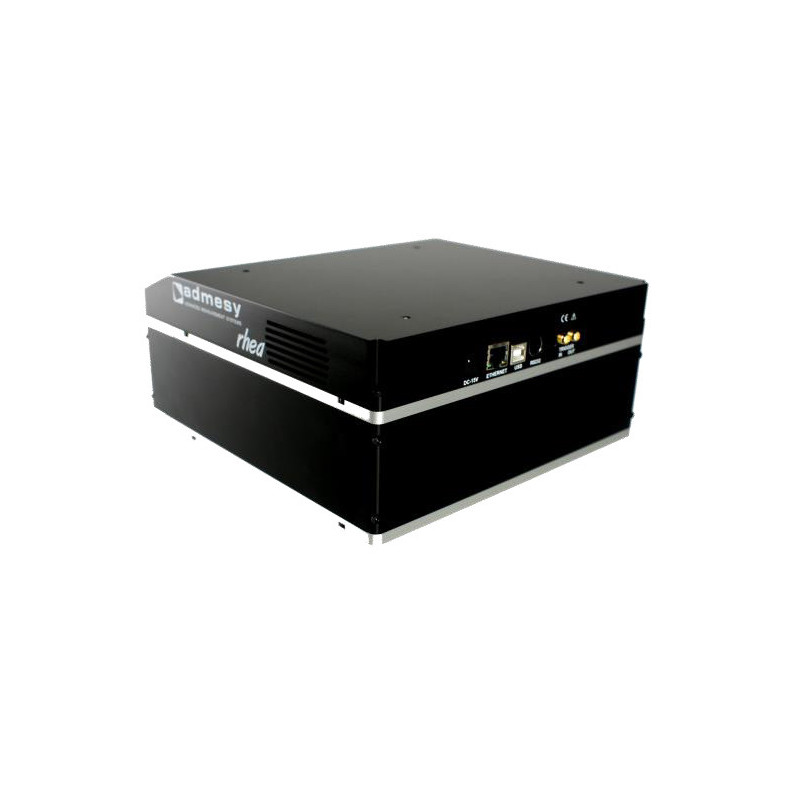

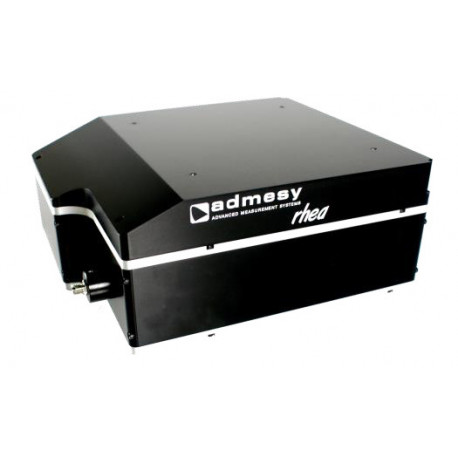

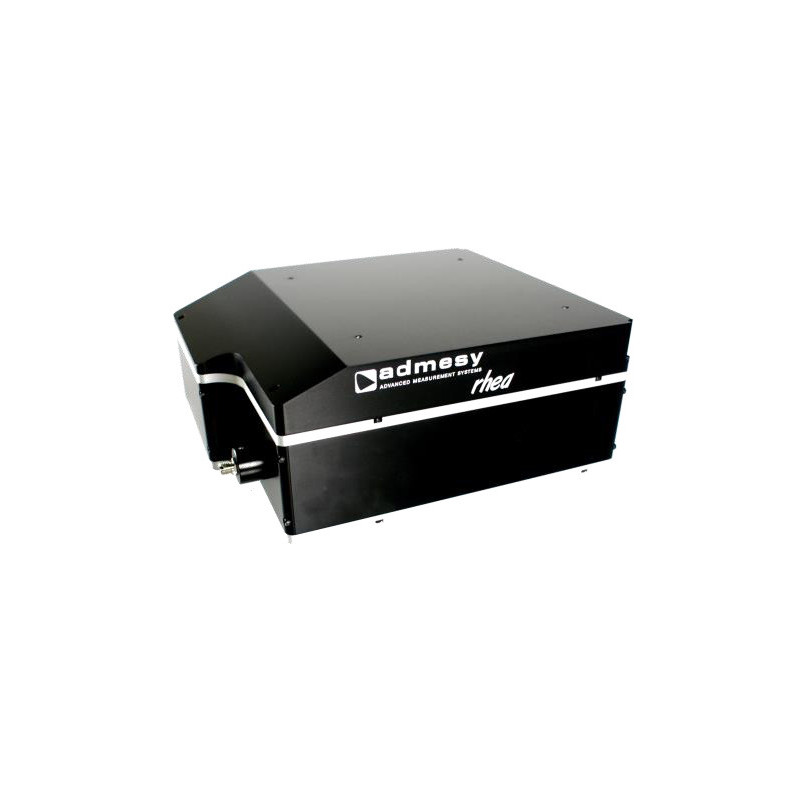

High End Spectrometer Rhea

Reference: ADM-Rhea

The Rhea series spectrometer from Admesy offers a unique combination of ease of use and accurate measurement capabilities packed in a robust jacket. The Rhea utilizes a high-end cooled CCD detector for low noise and high dynamic range.

Download
Print
Send to a friend
Send to a friend
High End Spectrometer Rhea
The Rhea series spectrometer from Admesy offers a unique combination of ease of use and accurate measurement capabilities packed in a robust jacket. The Rhea utilizes a high-end cooled CCD detector for low noise and high dynamic range.
Recipient :
Name ^* :
E-mail ^* :
Kommentar
^* Required fields
or Cancel
Remove this product from my favorite's list.
Add this product to my list of favorites.

Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr

Product request: High End Spectrometer RheaX

Dear Besson,

I am interested in the following product: High End Spectrometer Rhea

I am interested in:

an offer
Information material
a call back and consulting

Please complete at least the mandatory fields marked with *.

* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:

* E-Mail: * E-Mail:

* Phone: * Phone:

Text:

* What do you see in picture 2?* What do you see in Picture 2?

laserdiode

Bitte auswählen:Please select: Diode Gauge Safety Goggles Safety Windows

Please check red marked fields.

Your request has been sent successfully. You will be contacted as soon as possible.

Product description

Rhea series: high end spectrometer

The Rhea series spectrometer offers a unique combination of ease of use and accurate measurement capabilities packed in a robust jacket. The Rhea utilizes a high-end cooled CCD detector for low noise and high dynamic range. The Neutral density filter wheel extends this dynamic range and also adds a shutter function. An ideal device for measurements where ease of use, stability, performance and price are of the essence.

Highlights

Various standard spectral ranges including UV, VIS and NIR, custom spectral options range from 200 - 1100
Cooled high-end CCD detector, cooled to -10 degrees Celsius
High optical throughput design
Neutral density filter wheel for huge dynamic range
Shutter function
Low noise
Auto-range function
Wavelength calibrated
Very low stray light
Excellent linearity, internally compensated within %
Dark current compensated, virtually zero over entire integration range
USBTMC compliant, SCPI command set, high speed device
USB, RS232, Ethernet connections and trigger in & out for ideal system integration
All calculations are carried out inside the device, saving processing power in production environments
Robust housing, optimized for mounting and protection in harsh production environments

Specifications

Model	Rhea01
Spectral ranges	380 - 780 nm 360 - 830 nm 200 - 435 nm 200 - 1100 nm Custom wavelength options are available: any range between 200 - 1100 nm can be selected for custom applications.
Optical resolution (FWHM)	Depending on chosen option
Order sorting filter	Linear variable filter
Wavelength accuracy	+/- 0.5 nm
Stray light	< 0.05 % measured at 400 nm with 455 nm cut-off filter with broadband light source
Luminance accuracy	+/- 4 % (after calibration)
Chromaticity accuracy	+/- 0.002 (after calibration)
Non - Linearity	< 1 %
Baseline noise	+/- 6 counts
Fitler wheel	OD0, OD1, OD2, OD3, OD4, shutter function
Integration time	8 ms – 10 minutes
Spectral resolution	Selectable 0.5 nm - 1nm - 2.5 nm - 5nm - 10 nm
Cooling temperature	-10 degrees Celsius
Interfaces	High speed USB, RS232, Ethernet, Trigger connections
Measurement parameters	Spectral output, radiometric data or colour data (Lumen, x,y, DWL, PWL, CRI, CCT, etc.)
Data processing time	14 ms
Size (LxWxH)	230 x 195 x 82.5 mm (without optical system)
Weight	3000 gram
Operating temperature	10 - 35 °C
Power consumption	5000 mW
