> >>>Colorimeter Hyperion

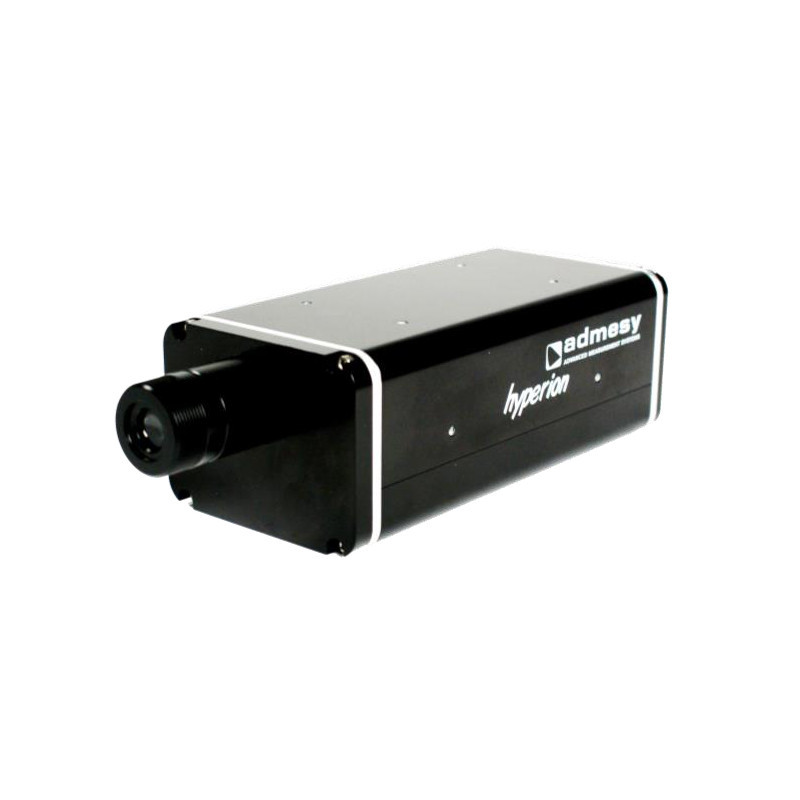

Colorimeter Hyperion View larger

Colorimeter Hyperion

Reference: ADM-Hyperion

The Hyperion colorimeter from Admesy offers a unique combination of high speed and accurate colour measurement capabilities packed in a robust jacket.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Colorimeter HyperionX



Dear Besson,

I am interested in the following product: Colorimeter Hyperion

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

Colorimeter Hyperion

The Hyperion series colorimeter from Admesy is the successor of our successful MSE platform colorimeter. The Hyperion offers even better filter characteristics compared to other colorimeters and ultra high sensitivity packed in a typical robust and compact Admesy jacket. The colorimeter Hyperion is truly the next level colorimeter, the ultimate user-friendly system for in-line colour measurement applications and display production.

Colorimeter Hyperion highlights

  • Nearly perfect CIE1931 filter characteristics
  • Higher sensitivity: lower noise circuit
  • High dynamic range
  • High speed luminance & colour measurements for accurate flicker measurements
  • All calculations done inside, including JEITA, for ease integration
  • Colour measurement in XYZ, Yxy, Yu’v’
  • Other colour spaces available via a supplied colour library
  • USB and RS232 communication interfaces

General Specifications of the colorimeter Hyperion

Interfaces

USB 2.0

USBMTC compliant, SCPI command set, high speed device

RS 232

For PC and embedded purposes, using same

command set as USB

Trigger in & out

5 V compliant


Power ratings

Min

voltage

Typical

voltage

Max

voltage

Max

current

USB power

4.75 V

8.75 V

5.25 V

300 mA

9 V power

8.75 V

9.00 V

9.25 V

300 mA


Measurement system

Photo detector

3 silicon photo diode using XYZ interference filter

Spectral response

Approximates CIE 1931 colour matching functions

Measurement parameters

XYZ, Yxy, Yuv, correlated color temperature (CCT), dominant wavelength DWL, Flicker, Response time

Size (H x W x D)

53 x 70 x 147 mm (without lens system)

Mounting

12 M3 threat holes spread over four sides

Downloads - Colorimeter Hyperion

ADM-AccBrochure.pdf

Data sheet: Accessories

Download (2.2M)
