Laser Safety Goggle, 190-540 nm polycarbonate

Reference: UNV-P1009-XXX

Laser safety goggles according to DIN EN 207 with polycarbonate filter and a daylight transmission of 38-53 %.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Laser Safety Goggle, 190-540 nm polycarbonateX



Dear Besson,

I am interested in the following product: Laser Safety Goggle, 190-540 nm polycarbonate

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

Laser goggles (190-540 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1009-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Polycarbonate
Filter color: Orange*
Daylight transmission: 38-40 %
(*the picture shows one filter color as an example only)

Optical density:

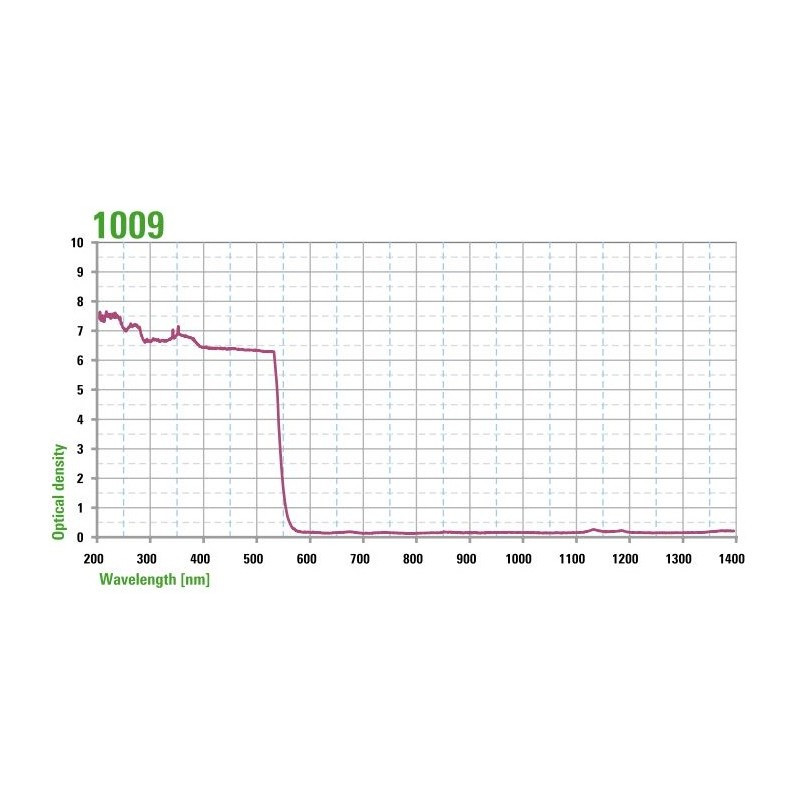

See filter curve in the picture gallery

Protection values:
Frames -561, -562, -559G:
190-315 D LB5 + IR LB3
>315-535 DIR LB5

Frames -546, -5X7:
180-315 D LB7 + IR LB4
>315-534 DIRM LB6
>315-536 DIRM LB5
>315-538 DIRM LB4
>315-541 DIRM LB3

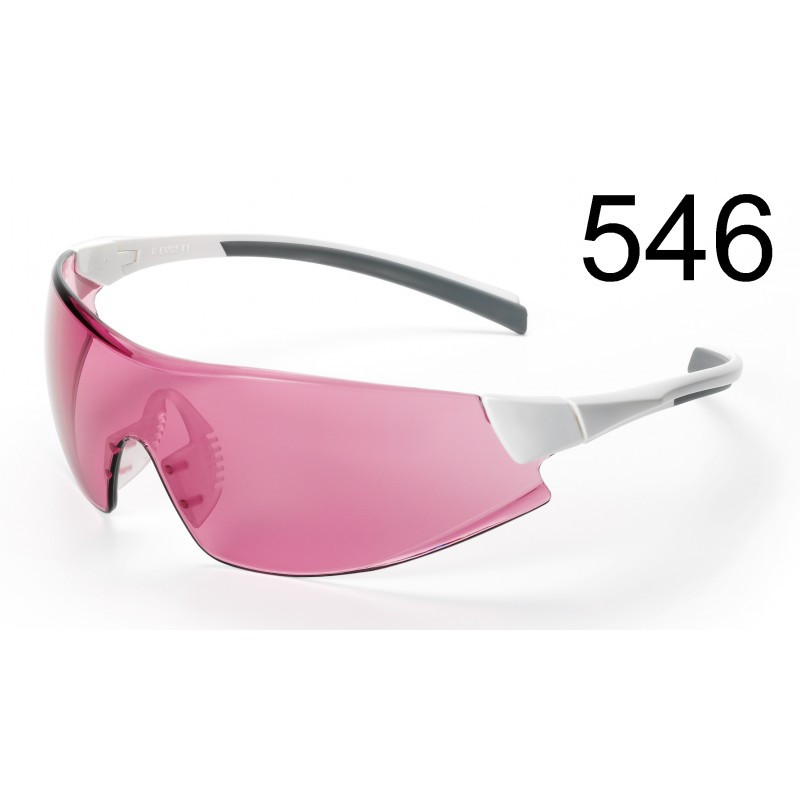

Frame -546:

  • Wraparound shape for outstanding protection
  • Extremely lightweight
  • Anti-slip soft rubber nose pad
  • Perfect-fit temple tips reduce the lateral pressure

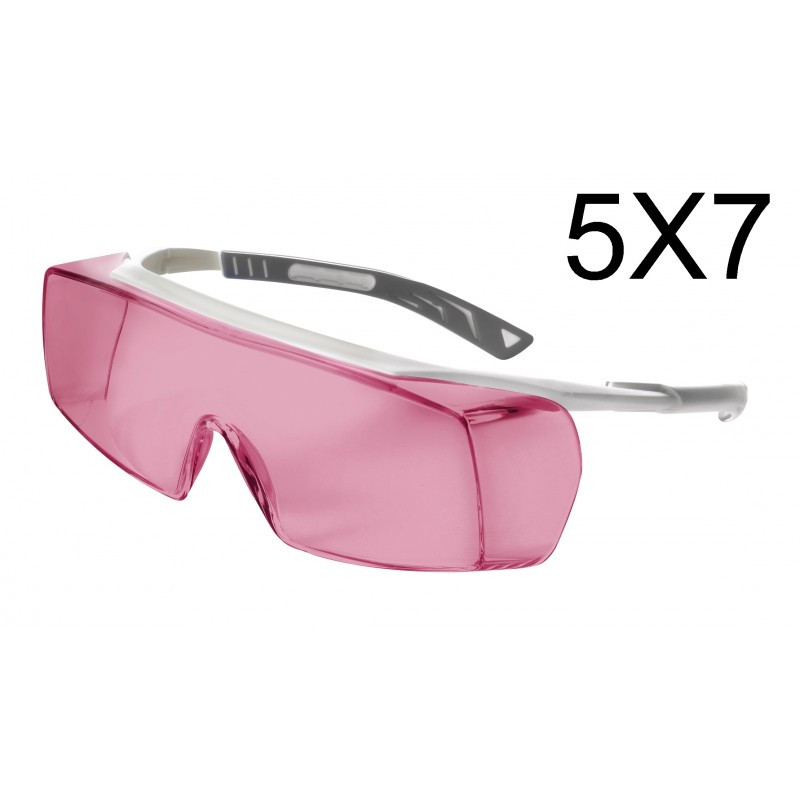

Frame -5X7:

  • Developed to be worn over every prescription glasses without losing in comfort
  • Ultra-light frame (42 g)
  • Wide vision single-lens absorbing filters made of polycarbonate
  • Equipped with patented Softpad technology
  • Adjustable temples

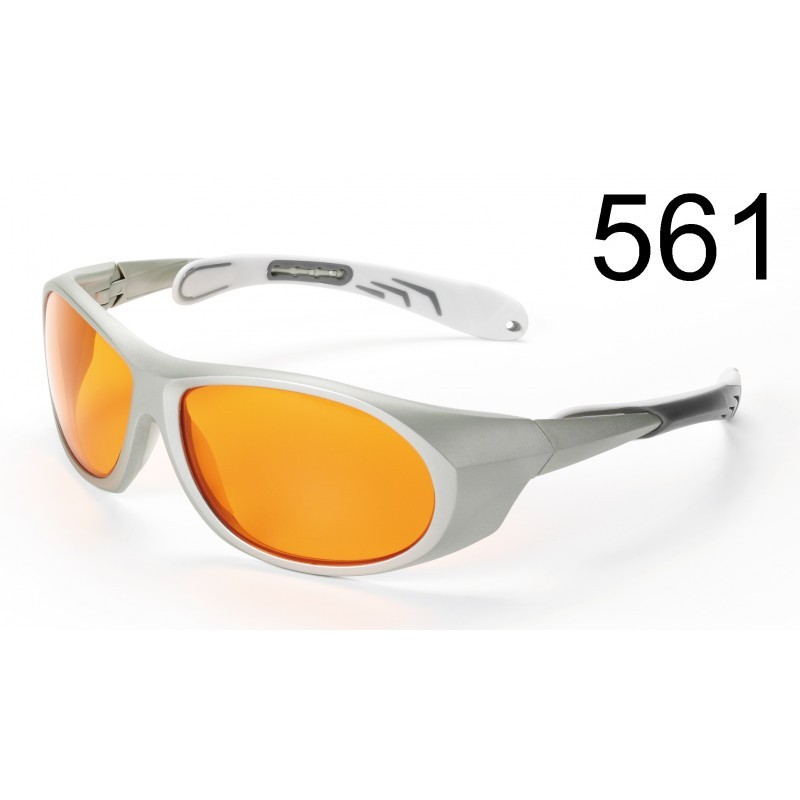

Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

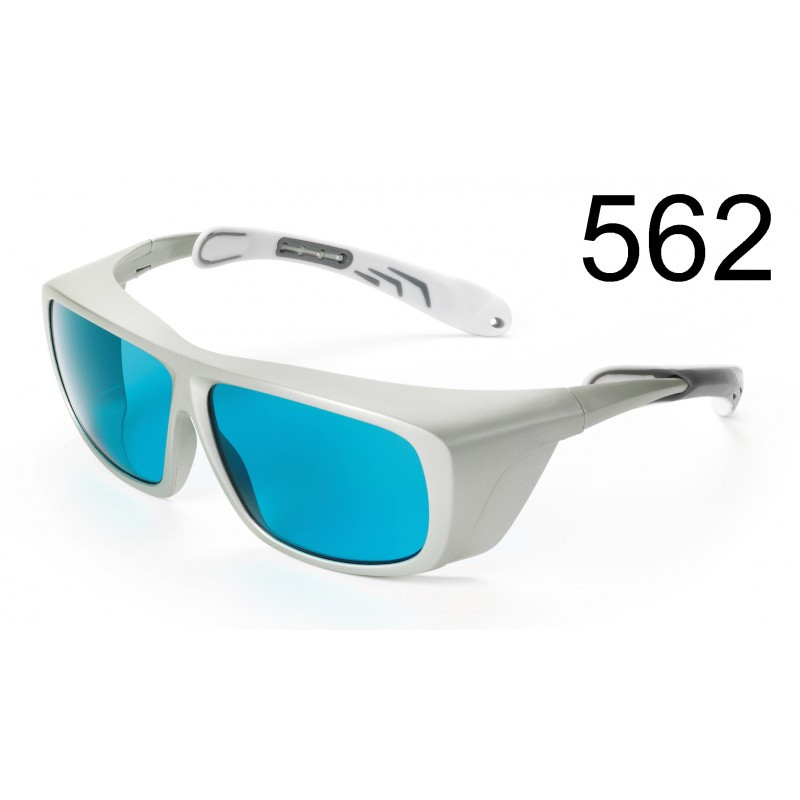

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses

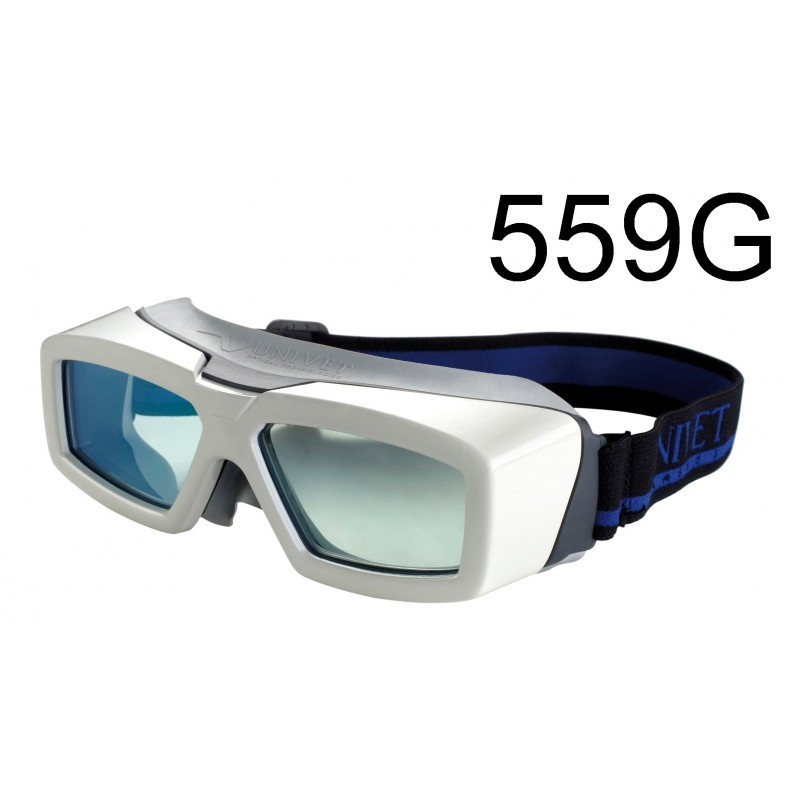

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses
