Product description

Laser goggles for telecom applications

These laser safety goggles are ideal for all laser wavelengths commonly used in telecom. The light turquoise colored spectacle lenses are almost colorless so that e.g. Color codes on patch cords can be well recognized. Ergonomically shaped, adjustable brackets (frame -562) ensure optimum wearing comfort. This frame shape allows the wearing of the laser safety goggles also over a normal glasses.

UNV-G2004-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207


Filter material: Glass
Filter color: Aqua*
Daylight transmission: 70 %
(*the picture shows one filter color as an example only)

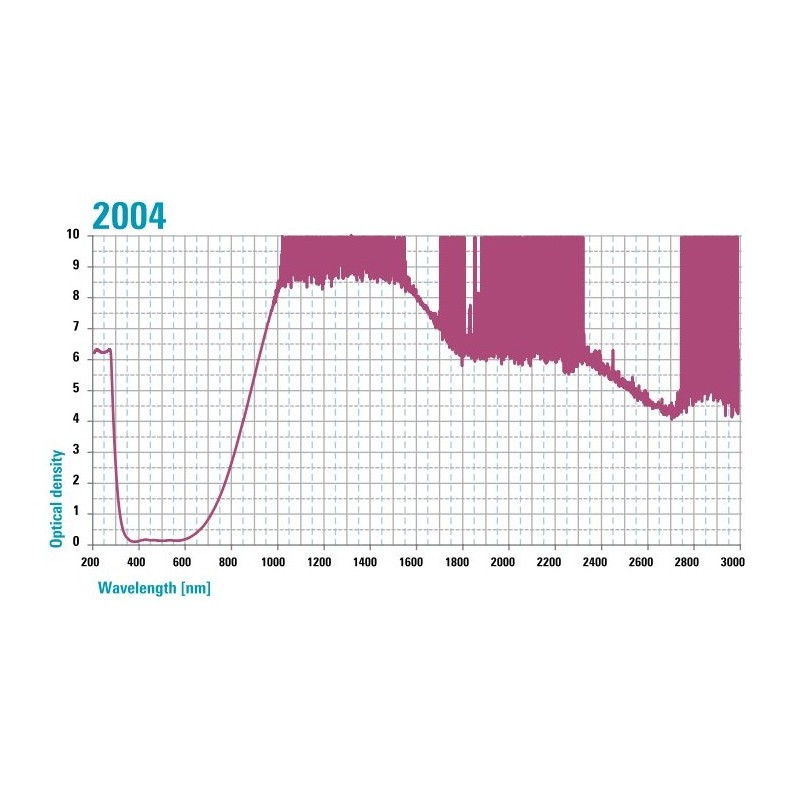

Optical density:
See filter curve in the picture gallery

Protection values:
Frame -531:
190-260 D LB9 + IR LB4
815-1400 DIR LB3
850-1400 DIR LB4
890-1400 DIR LB5
930-1400 D LB5 + IR LB6
950-1400 D LB5 + IR LB7
990-1400 D LB5 + IR LB7
>1400-3000 DI LB3
10600 DI LB3

Frames -561, -562:
190-260 D LB8 + IR LB4
815-1400 DIR LB3
850-1400 DIR LB4
890-1400 DIR LB5
930-1400 DIR LB6
950-1400 D LB6 + IR LB7
990-1400 D LB6 + IR LB7
>1400-3000 DI LB4
10600 DI LB4

Frames -559, -559G, -616:
190-260 D LB9 + IR LB4
815-1400 DIR LB3
850-1400 DIR LB4
890-1400 DIR LB5
930-1400 DIR LB6
950-1400 D LB6 + IR LB7
990-1400 D LB6 + IR LB8
>1400-3000 DI LB4
10600 DI LB4

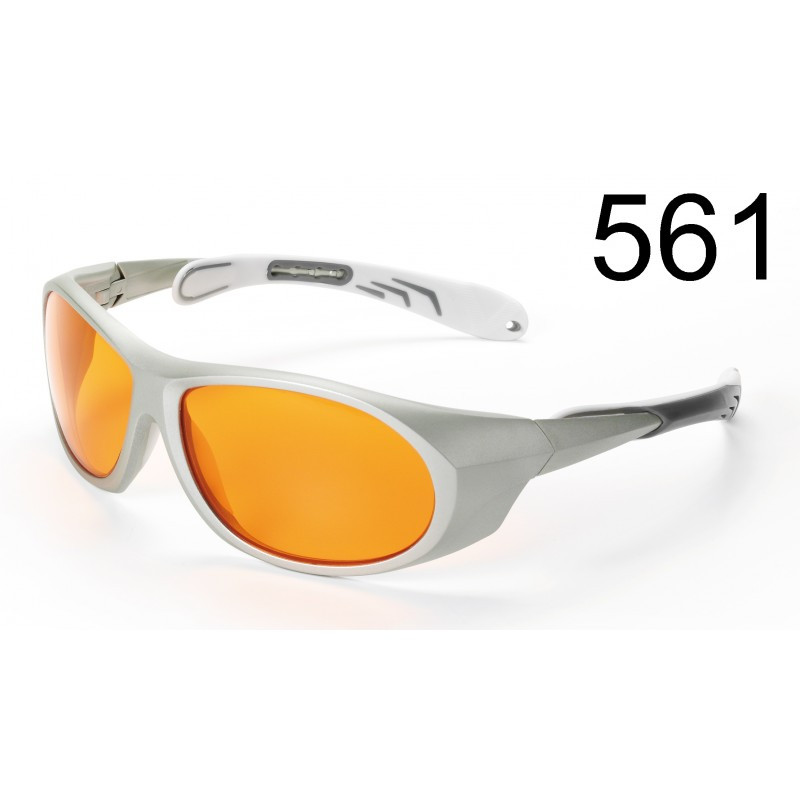

Frame -561:
  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

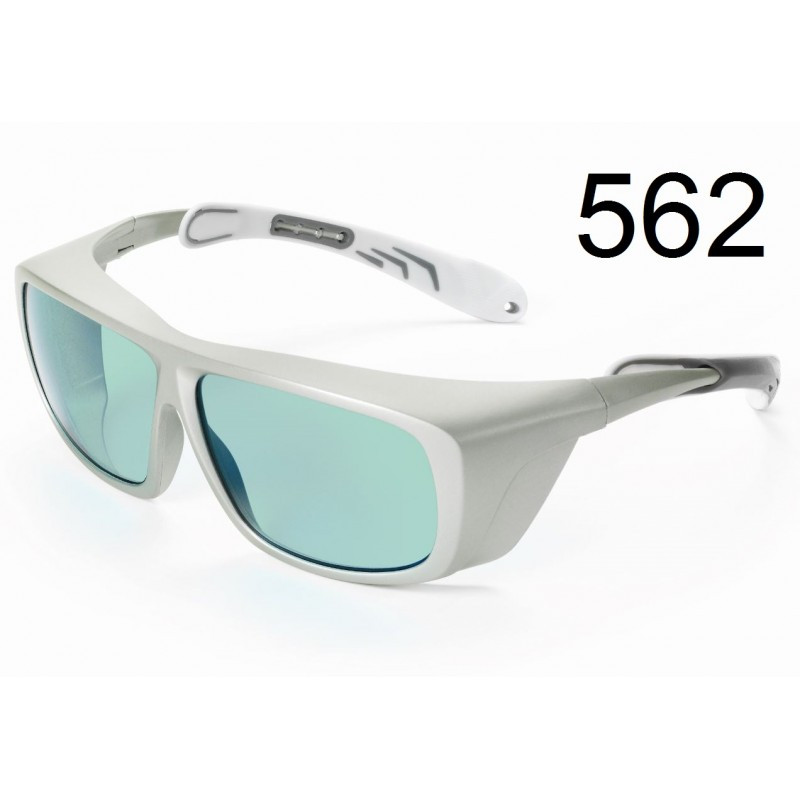

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses

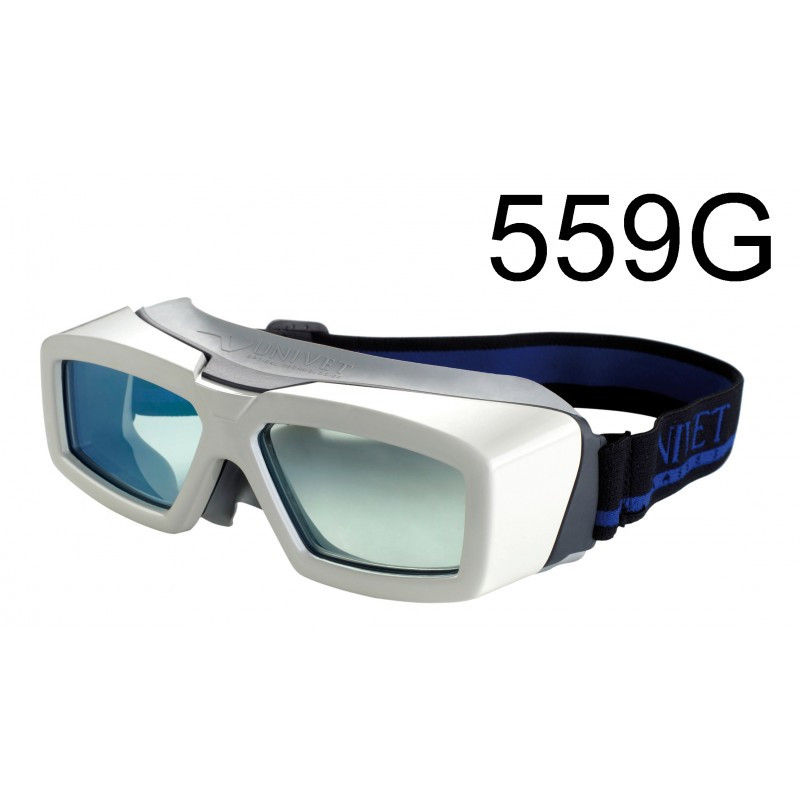

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses

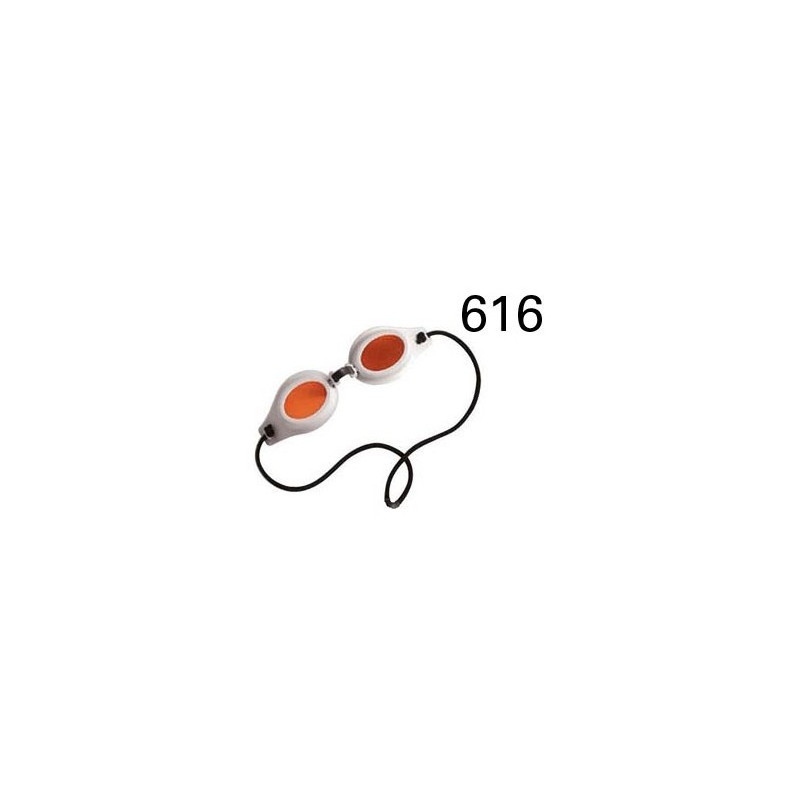

Frame -616:

  • Laser protection for patients
  • Adjustable nose pad
  • Adjustable cord
  • Can be sterilized by an autoclave
