Laser Safety Goggle, 645-1525/2800-3300 nm with glass filter

Reference: UNV-G2001-XXX

Laser safety goggles according to DIN EN 207 with glass filter and a daylight transmission of 40 %.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Laser Safety Goggle, 645-1525/2800-3300 nm with glass filterX



Dear Besson,

I am interested in the following product: Laser Safety Goggle, 645-1525/2800-3300 nm with glass filter

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

Laser goggles (645-1525/2800-3300 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-G2001-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207

Filter material: Glass
Filter color: Green*
Daylight transmission: 40 %
(*the picture shows one filter color as an example only)

Optical density:

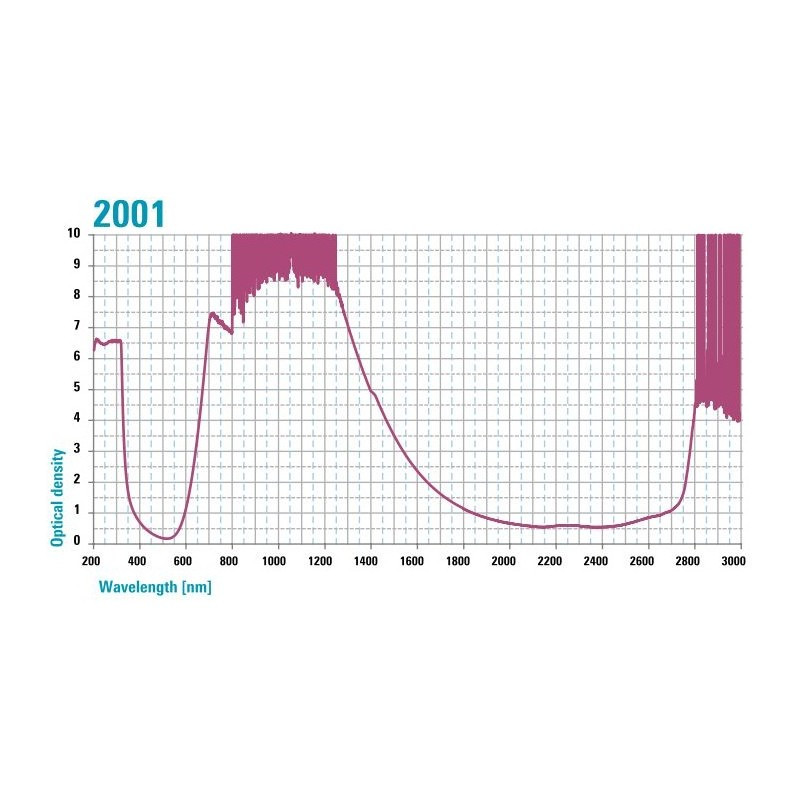

See filter curve in the picture gallery

Protection values:
Frame -531:
190-315 D LB9 + IR LB4
645-1400 DIR LB3
660-1400 DIR LB4
675-1360 DIR LB5
685-1345 D LB5 + IR LB6
695-1300 D LB5 + IR LB7
720-1250 D LB5 + IR LB7
>1400-1525 DI LB3
2800-3300 DI LB3
10600 DI LB3

Frames -561, -562:
190-310 D LB8 + IR LB4
650-1200 DIR LB3
670-1200 DIR LB4
690-1200 DIR LB5
700-1200 DIR LB6
720-1200 DR LB6 + I LB7
10600 DI LB4

Frames -559G, -616:
190-315 D LB9 + IR LB4
645-1400 DIR LB3
660-1400 DIR LB4
675-1360 DIR LB5
685-1345 DIR LB6
695-1300 D LB6 + IR LB7
720-1250 D LB6 + I LB7 + R LB8
>1400-1525 DI LB3
2800-3300 DI LB4
10600 DI LB4

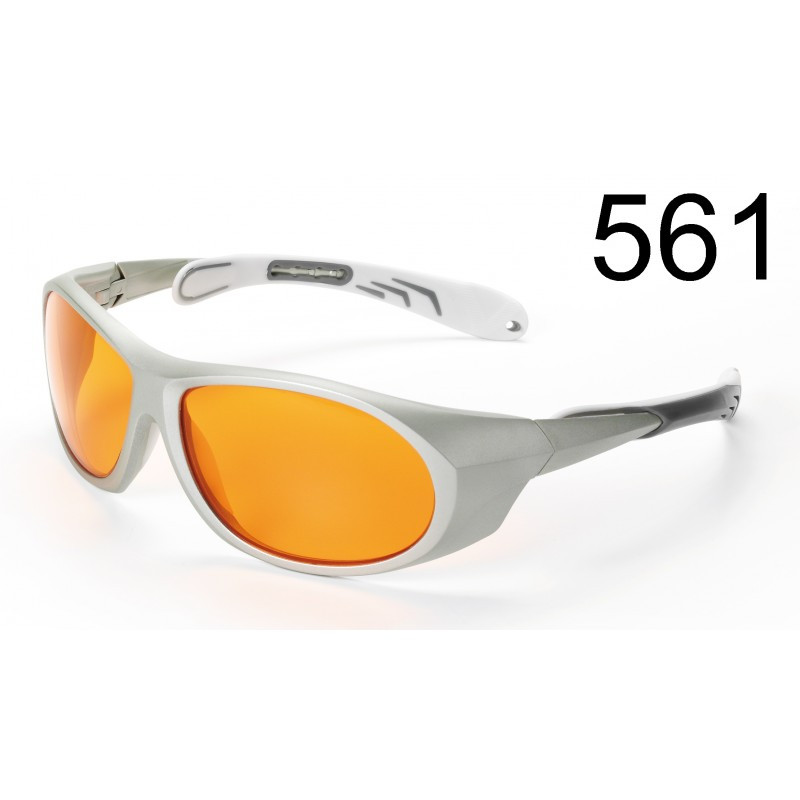

Frame -561:

  • Smart design
  • Soft hypoallergenic nose pad
  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face

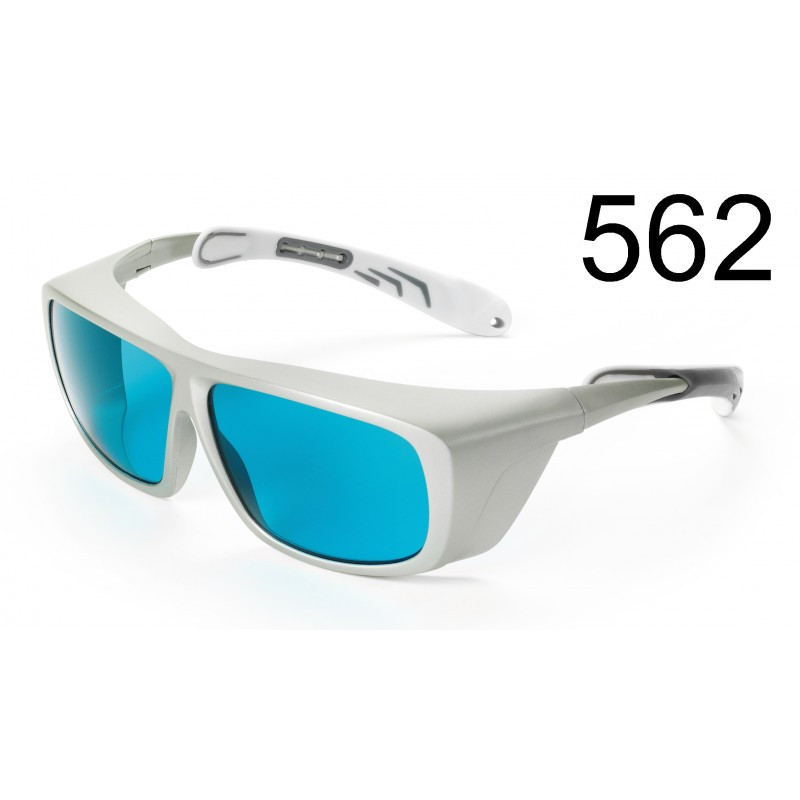

Frame -562:

  • Adjustable temples
  • Ergonomic wraparound temples fit perfectly on user face
  • Universal overspec on every prescription glasses


Frame -531:

  • Side protection
  • Adjustable hypoallergenic silicon nose pad
  • Adjustable temples

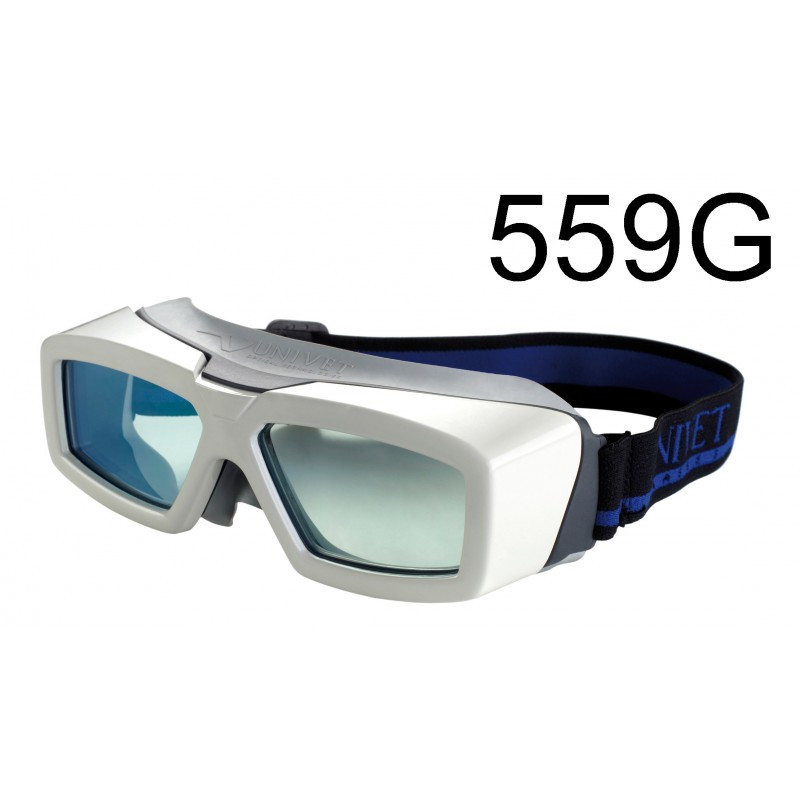

Frame -559G:

  • High power laser protection
  • High protection 2 mm aluminum shield
  • Adjustable elastic band improves the stability
  • Internal soft rubber eliminates local pressure
  • Can be worn over prescription glasses

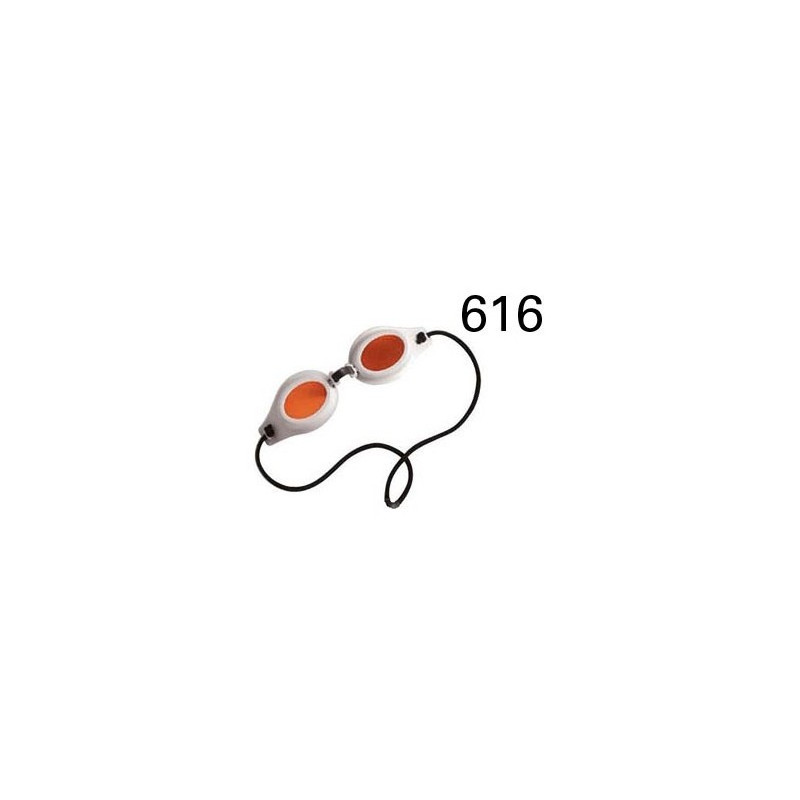

Frame -616:

  • Laser protection for patients
  • Adjustable nose pad
  • Adjustable cord
  • Can be sterilized by an autoclave
  • Ideal for medical practices and clinics
