Laser Safety Goggle 745-1115 nm polycarbonate

Reference: UNV-P1005-XXX

Laser safety goggles according to EN 207 and laser adjustment goggles according to EN 208 with polycarbonate filter and a daylight transmission of 42-45 %.






Alexandre Besson
Business Unit Director
+33 5 57 10 92 84
a.besson@laser2000.fr
Product request: Laser Safety Goggle 745-1115 nm polycarbonateX



Dear Besson,

I am interested in the following product: Laser Safety Goggle 745-1115 nm polycarbonate

I am interested in:

an offer
Information material
a call back and consulting
Please complete at least the mandatory fields marked with *.



* Title:

Academic Degree:

First Name:

* Last Name: * Last Name:

* Company Name: * Company Name:

Company Address:

* Street: * Street:

* Zip Code: * Zip Code:

* City: * City:


* E-Mail: * E-Mail:

* Phone: * Phone:

Text:



* What do you see in picture 2?* What do you see in Picture 2?

laserdiode laserschutzbrille laserschutzfenster leistungsmessgerät


Bitte auswählen:Please select:    Diode    Gauge    Safety Goggles    Safety Windows



Please check red marked fields.




Your request has been sent successfully. You will be contacted as soon as possible.




Product description

Laser goggles (745-1115 nm)

Lasers have found their way into many areas of industry, medicine and research. Accordingly, laser protection is essential for the safe handling of these intensive beam sources of different wavelength, power and radiation mode. The CE certification guarantees compliance with the valid standards according to international and European optical and laser standards (DIN EN 207 / EN208).

UNV-P1005-xxx (xxx=frame), Laser Safety Goggle according to DIN EN 207, Laser Adjustment Goggle according to DIN EN 208

Filter material: Polycarbonate
Filter color: Green*
Daylight transmission: 42-45 %
(*the picture shows one filter color as an example only)

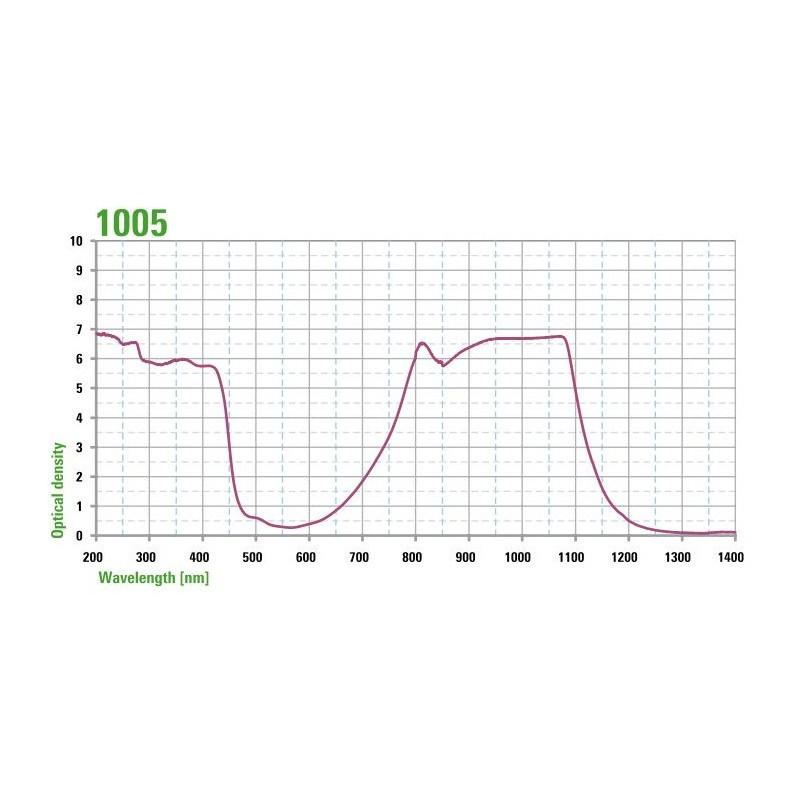

Optical density:
See filter curve in the picture gallery

Protection values:

Frames -561, -562, -559G:
190-315 D LB5 + IR LB3
>315-430 DIR LB5
750-1100 DIR LB3
775-1100 DIR LB4
790-1090 DIR LB5
920-1075 DIR LB6 + M LB6Y
1000-1070 DR LB6 + I LB7 + M LB7Y
10600 DI LB4

Frame -546:
745-1115 DIR LB3
770-1100 DIR LB4
785-1085 DIR LB5
800-825 DIR LB6
885-1075 DIR LB6
1000-1070 D LB6 + IR LB7 + M LB7Y
1030-1065 D LB6 + IR LB8 + M LB7Y
0,01 W 2x10^-6 J 660-700 RB1

Frame -5X7:
745-1115 DIR LB3
770-1100 DIR LB4
785-1085 DIR LB5
800-825 DIR LB6
885-1075 DIR LB6
1000-1070 D LB6 + IR LB7 + M LB7Y
1030-1065 D LB6 + IR LB8 + M LB7Y
9000-11000 DI LB3
0,01 W 2x10^-6 J 660-700 RB1

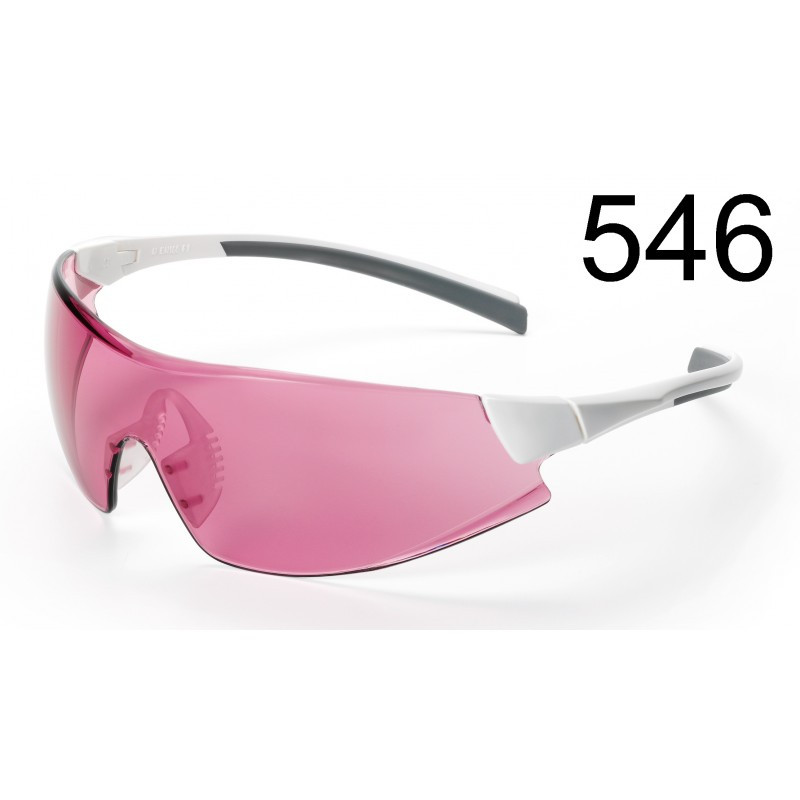

Frame -546:
- Wraparound shape for outstanding protection
- Extremely lightweight
- Anti-slip soft rubber nose pad
- Perfect-fit temple tips reduce the lateral pressure

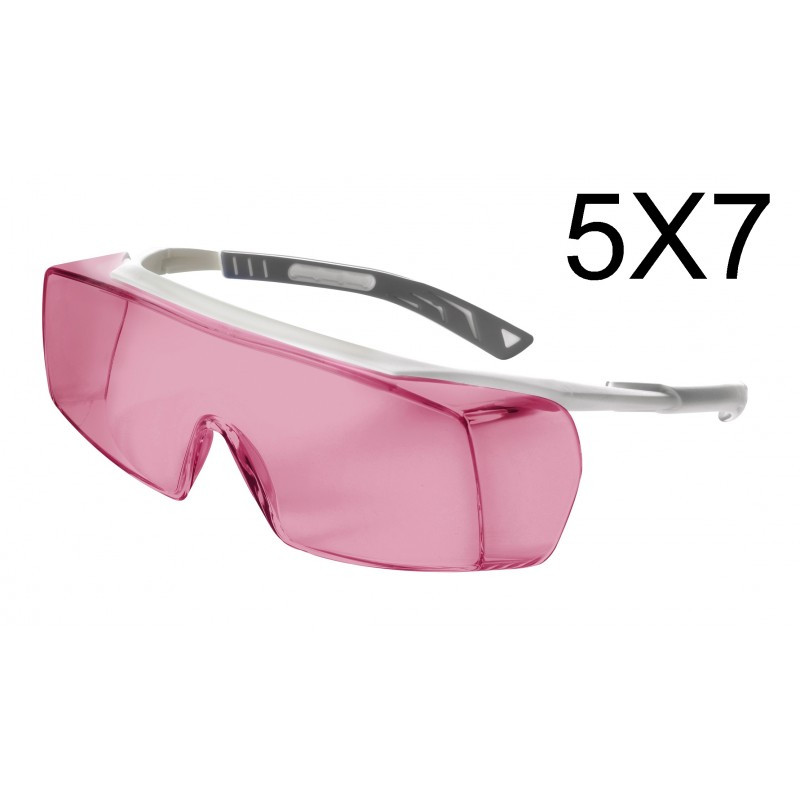

Frame -5X7:
- Developed to be worn over every prescription glasses without losing in comfort
- Ultra-light frame (42 g)
- Wide vision single-lens absorbing filters made of polycarbonate
- Equipped with patented Softpad technology
- Adjustable temples

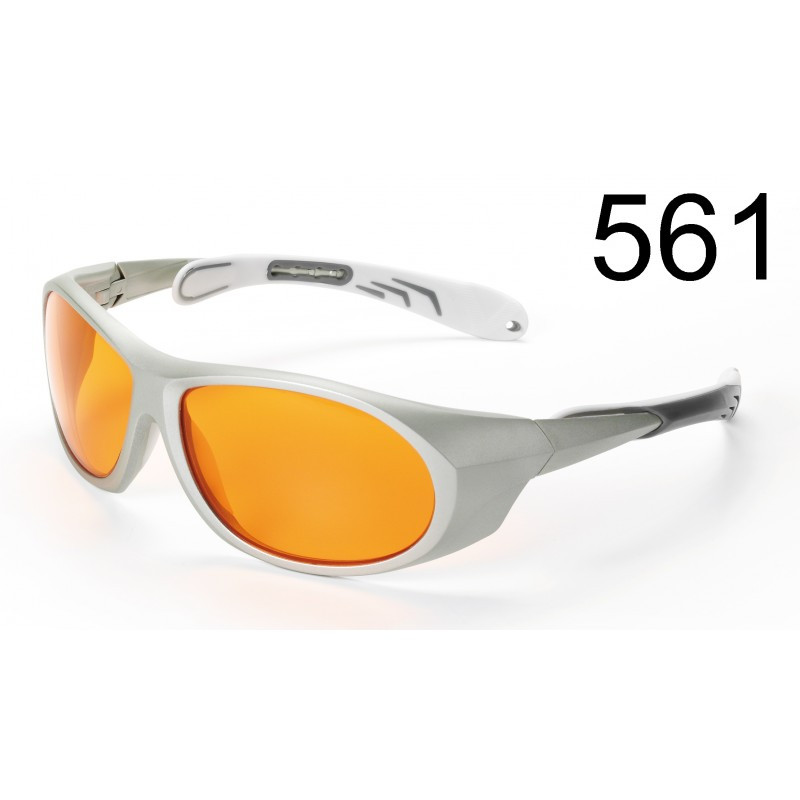

Frame -561:
- Smart design
- Soft hypoallergenic nose pad
- Adjustable temples
- Ergonomic wraparound temples fit perfectly on user face

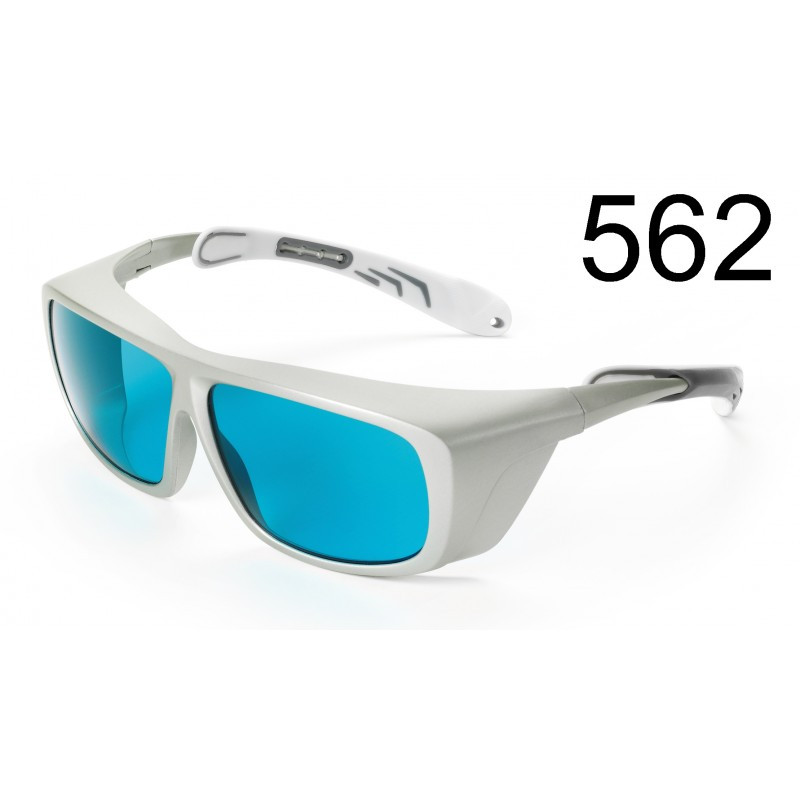

Frame -562:
- Adjustable temples
- Ergonomic wraparound temples fit perfectly on user face
- Universal overspec on every prescription glasses

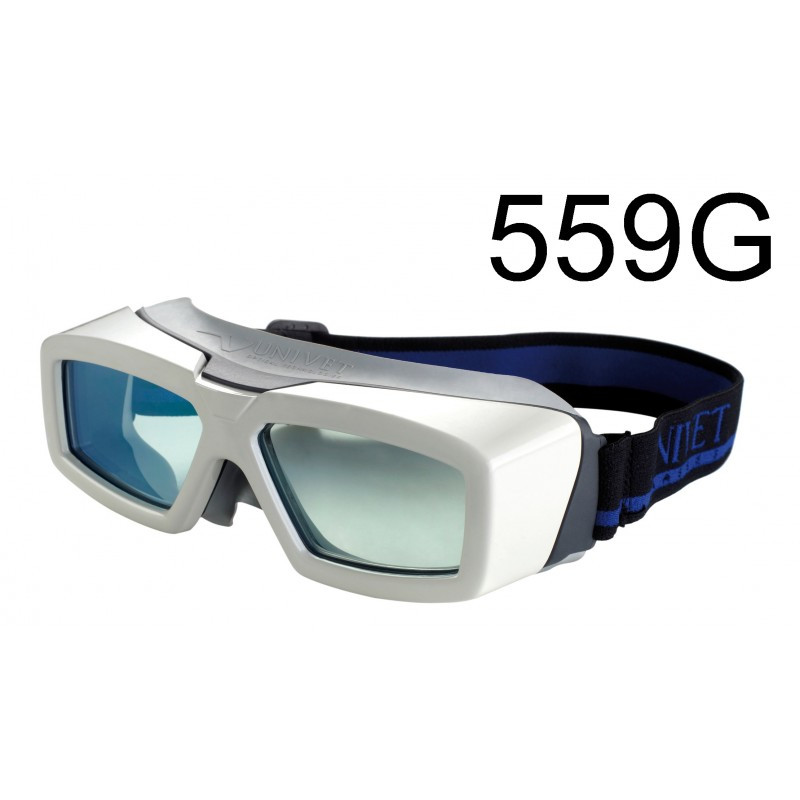

Frame -559G:
- High power laser protection
- High protection 2 mm aluminum shield
- Adjustable elastic band improves the stability
- Internal soft rubber eliminates local pressure
- Can be worn over prescription glasses
