Product description

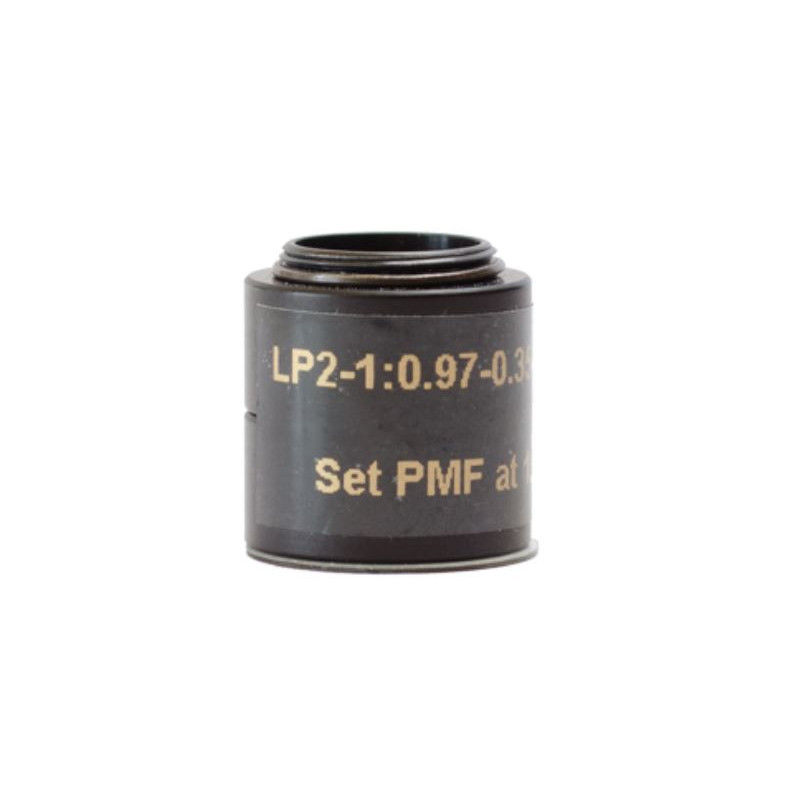

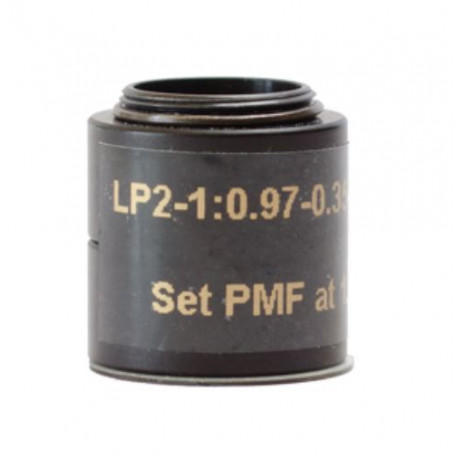

Lens-based Adaption for Beam-Map2 and Beam-R2

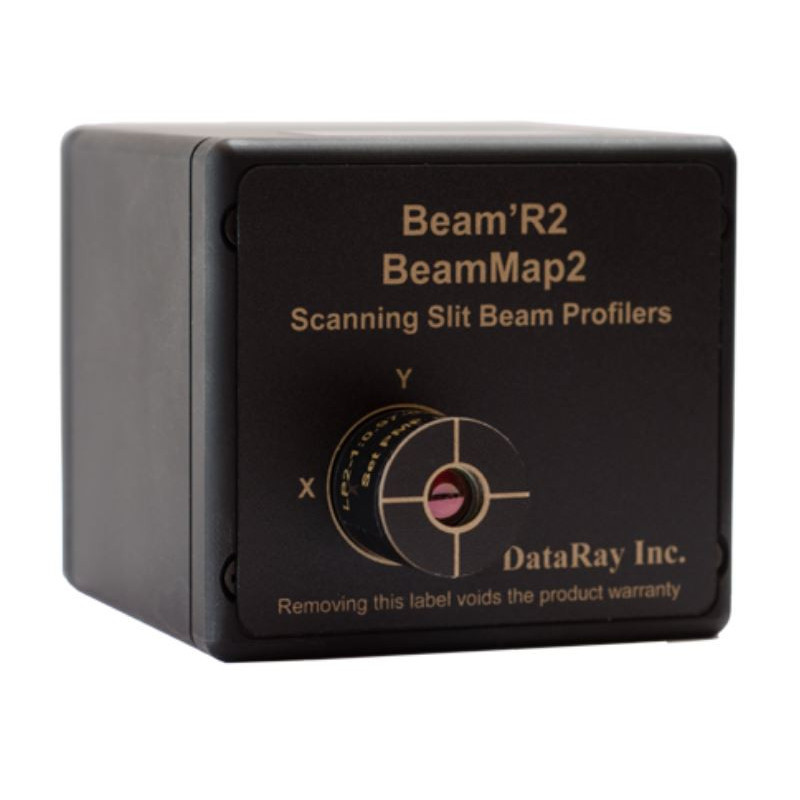

The Lensplate allows the user an almost direct connection to the detector of Beam-Map2 and Beam-R2

Please chose between folowing parameters:

Wavelenght:
+ 850 = corrected from 600 nm to 1050 nm
+ 1550 = corrected from 1050 nm to 1750 nm

Working-distance and Numerical Aperture:
+ LP-1:1-0.65:
Input NA : 0,65
Angle: 81°
Workingdistance 1,56 mm
Resolution: 0,63 µm @675 nm /1,45 µm @1550nm
Magnification : 1:1
for small beams and fiber ends

+ LP-1:4.9
Input NA : 0,68
Angle: 85,6°
Workingdistance 1,75 mm
Resolution : 0,61 µm @675 nm /1,40 µm @1550nm
Magnification : 1:4,9
for waveguides and lensed fibers

also available for Beam-Map and Beam-R Gen1
