Product description

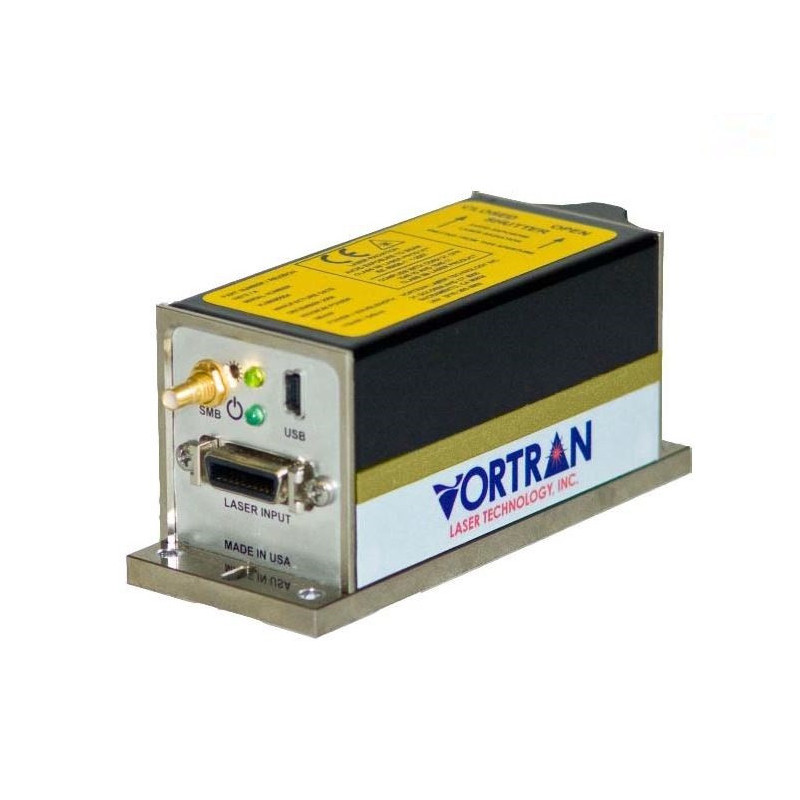

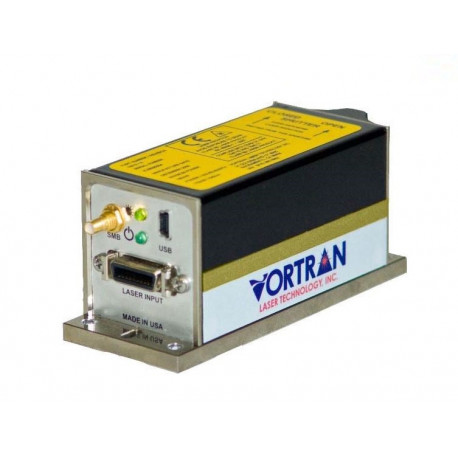

The Stradus series solid state laser at 561 nm is characterized by its unique fast modulation capability. A perfect beam profile, low noise and an excellent long-term stability are given by default.

Properties:

- 561 nm, 50 mW

- Circular Beam Profile

- TEM00, M2<1.1

- Stability <0.5% over 24 hours

- Noise 0.1%

- Digital Modulation up to 10 MHz (12 ns rise time)

- Analog Modulation up to 100 kHz (2 µs rise time)

- USB and RS232 Interface

- Graphical User Interface Software GUI

- Dimensions Laser Head 40 x 45.1 x 100 mm

- Fiber Coupling Option (Singlemode, FC/PC)

- OEM Versions available
